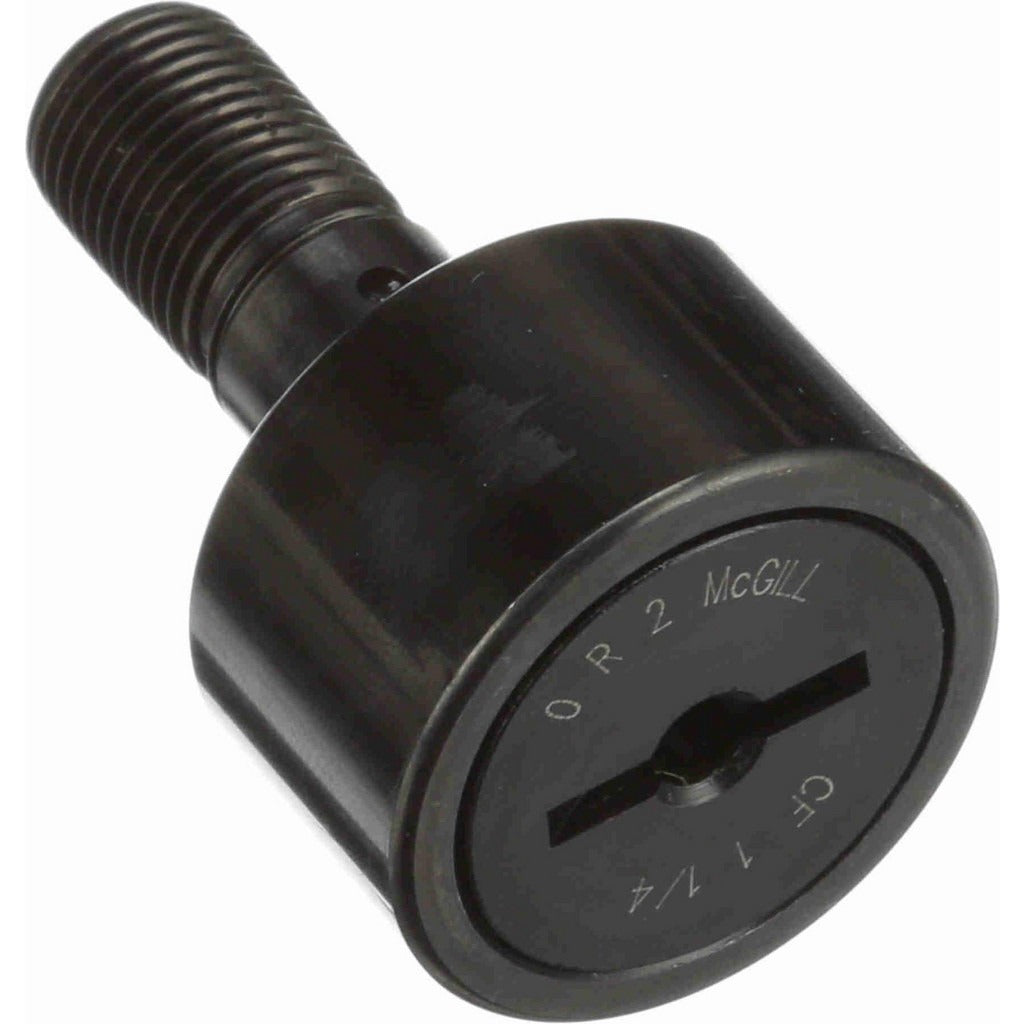

Mcgill 2120100000 Plain Stud Cam Follower 1.25in Roller

Product Description

The MCGILL 2120100000 is a plain stud cam follower designed for use in cam-and-follower mechanisms found in industrial machinery, conveyor systems, and motion-control applications. It features a cylindrical steel needle roller with a 1.25-inch roller diameter and 0.75-inch roller width, paired with a 0.5-inch stud diameter and a 1-1/4-inch stud length. The needle roller bearing design provides high radial load capacity in a compact envelope. This follower is unsealed, making it appropriate for applications where external lubrication is maintained. Mechanical technicians and millwrights are the primary installers of this type of component.

This cam follower is suited for industrial and light manufacturing environments where a stud-mount track roller is required to follow cam profiles or guide along track surfaces. The 1/2-20 threaded stud with a 5/8-inch thread length allows secure mounting into tapped bores in standard machine frames and fixtures. At a maximum rated speed of 3,100 RPM and a dynamic load capacity of 3,930 pounds, it handles moderate-to-heavy radial loads in continuous-duty cycle equipment. It is a direct-fit replacement for applications currently using the McGill part number CF 1-1/4.

Key Features

• Cylindrical steel needle roller construction for high radial load capacity
• 1.25-inch roller diameter with 0.75-inch roller width
• 1/2-20 threaded stud, 5/8-inch thread length for secure stud mounting
• 3,930 lb dynamic load capacity and 4,250 lb static load capacity
• Maximum operating speed of 3,100 RPM
• Unsealed design compatible with externally lubricated systems

Compatibility

Designed as a direct replacement for McGill part number CF 1-1/4. Fits applications requiring a 1/2-20 stud-mount needle roller cam follower with a 1.25-inch cylindrical roller diameter.

Installation Notes

Installation is performed by qualified millwrights or mechanical technicians using standard hand and torque tools. De-energize and lockout all power to the equipment before disassembly or installation. The unsealed needle roller requires adequate lubrication at installation and per the equipment manufacturer's maintenance schedule. Do not exceed the rated dynamic load or maximum RPM for the application.
