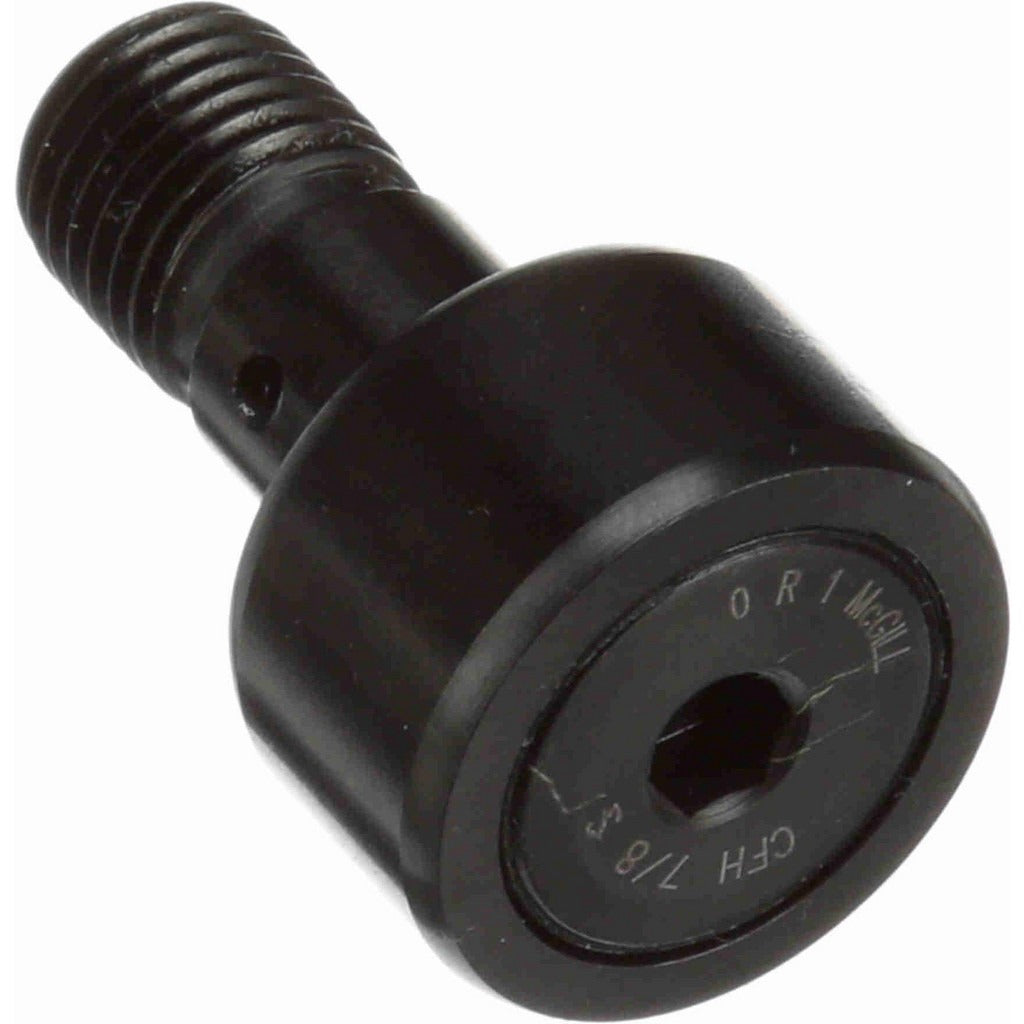

Mcgill 2080512000 Sealed Heavy Stud Cam Follower

Product Description

The MCGILL 2080512000 is a sealed heavy stud cam follower with a hex head, designed for use in cam-and-follower mechanisms where a guided roller element tracks a cam surface or linear rail. The roller measures 0.875 inches in diameter and 0.5 inches wide, with a cylindrical profile and a needle roller bearing type rated for a dynamic load capacity of 1,660 lb and a static load capacity of 4,130 lb. The stud is 0.4375 inches in diameter and 0.875 inches long with a 7/16-20 thread. This part is installed by maintenance technicians and mechanical trades working on industrial machinery, conveyor systems, and motion-control assemblies.

This cam follower suits applications in industrial equipment where a stud-mounted roller bearing is required to follow a cam track, guide rail, or mating surface under load. The sealed construction helps protect the internal needle roller bearing from contamination in typical industrial environments. The hex head allows for secure stud installation with a standard wrench. Typical install scenarios include automation equipment, packaging machinery, and mechanical drive systems requiring a precision rolling element on a stud mount.

Key Features

• Cylindrical steel roller, 0.875 inches diameter x 0.5 inches wide
• Needle roller bearing type for high radial load capacity in a compact envelope
• Sealed closure type protects bearing from contaminants
• Hex head stud for positive installation torque with standard tooling
• Dynamic load capacity: 1,660 lb; static load capacity: 4,130 lb
• Maximum operating speed: 5,400 RPM

Compatibility

McGill part number CFH 7/8 SB. Designed as an OEM-style replacement cam follower for industrial machinery applications requiring a 7/16-20 threaded stud mount with a 0.875-inch cylindrical roller.

Installation Notes

Installation is performed by qualified mechanical maintenance personnel. De-energize and lock out all power sources before beginning any work on equipment containing this part. The hex head stud is threaded to 7/16-20 and engages a 3/8-inch thread length, so ensure the mating bore thread condition is clean and undamaged before installation. Do not exceed the rated dynamic or static load values, and verify maximum RPM requirements match the application before installing.
