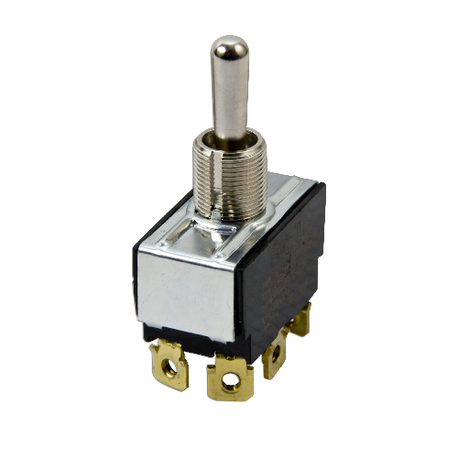

McGill 01210004N Multi-Pole Toggle Switch 125/250 VAC 15/10 A 3/4 hp DPDT

Product Description

The McGill 01210004N is a Multi-Pole Toggle Switch designed for efficient power control. This switch operates at voltages of one hundred twenty-five to two hundred fifty volts alternating current and is rated for fifteen amps and ten amps respectively. It is suitable for various applications including food service, generator systems, industrial control, marine, and office automation.

• Rugged metallic construction for long service life
• Compatible with low voltage DC applications
• Indicating plate included for ON-OFF circuits

Product Highlights

This toggle switch features a durable phenolic base and nickel plated brass bat handle. It supports mounting with a half-inch hole and is designed for ON/OFF/ON operations, making it versatile for different setups.

Product Information

Standard Information

• Voltage Rating: 125/250 VAC
• Amperage Rating: 15/10 A

Technical Specifications

• Actuator: Toggle
• Contact Configuration: DPDT
• Material: Phenolic
• Dimensions: 1.31 inches L x 0.75 inches W x 2.36 inches H
• Number Of Poles: 2
• Mounting: Threaded
• Minimum Order Quantity: 1
• Standard & Approvals: CSA C22.2 No. 55 Certified, RoHS Compliant, UL Recognized
