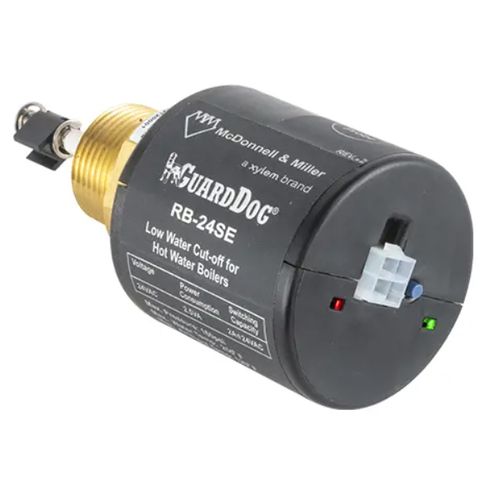

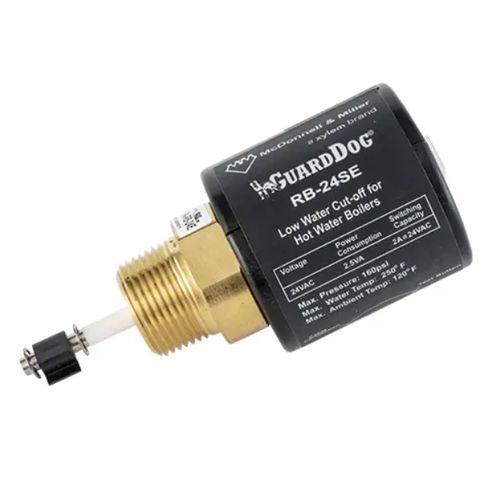

MCDONNELL & MILLER RB-24SE-S Low Water Cut-Off

Product Description

The MCDONNELL & MILLER RB-24SE-S is an electronic low water cut-off suitable for hot water boilers. It stops the electrical current to the firing device when the water level is too low, which protects the boiler. The device automatically resets when water levels are back to normal. A test button is included to check its operation, and LED lights show power and low water status. The design of the probe helps to reduce scale build-up.

• Designed for hot water boilers.
• Features automatic reset and a test button.
• Equipped with LED indicators for power and low water status.

Product Highlights

This low water cut-off helps to maintain safe boiler operation by monitoring water levels effectively.

Product Information

Standard Information

• Application: Hot Water Boilers
• Reset Type: Automatic

Technical Specifications

• Connection Type: Threaded
• Thread Size: 3/4 inches
• Operating Voltage: 24V
• Power Consumption: 2.5 VA
• Probe Sensitivity: 15000 ohms
• Maximum Water Temperature: 250 degrees F
• Maximum Ambient Temperature: 120 degrees F
• Maximum Water Pressure: 160 psi
• Switching Capacity: 2 Amps @ 24 VAC
