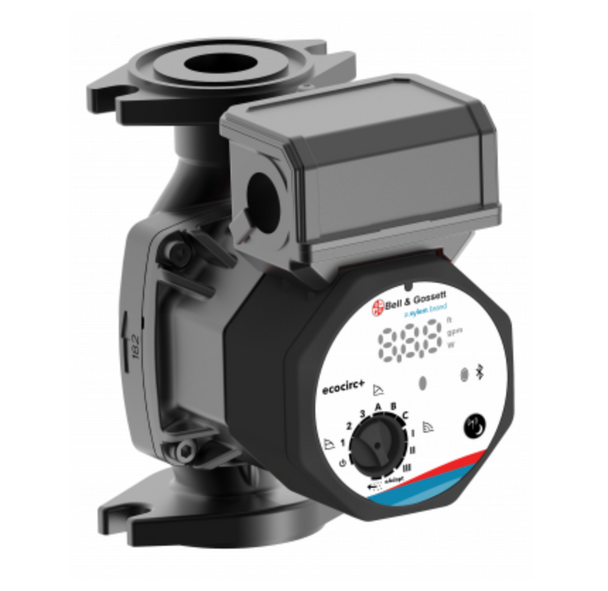

Mcdonnell & Miller 60B0B1001 Ecocirc 20-18 Stainless Steel Flanged High Efficiency Circulator

Product Description

The McDonnell & Miller 60B0B1001 Ecocirc 20-18 is a stainless steel flanged high-efficiency circulator designed for heating, cooling, and potable water systems. This variable-speed ECM smart circulator offers superior performance and control. The ecocirc+ 20-18 model provides wireless connectivity for full control via your phone. It features an integrated system protection and automatic air purge.

• Maximum of 20 feet of head or 18 GPM
• 70W maximum power
• 3 modes – proportional pressure, constant pressure, or adjustable speed control
• Fluid temperature: 14-230ºF

Product Highlights

This circulator features multiple modes, integrated system protection, automatic air purge, and easy-to-read LED display. A check valve and insulation shell are included.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Manufacturer Part Number: 60B0B1001

Technical Specifications

• Maximum Head: 20 feet
• Maximum Flow: 18 GPM
• Maximum Power: 70W
• Operating Modes: Proportional pressure, constant pressure, or adjustable speed control
• Fluid Temperature: 14-230ºF
• Integrated System Protection: CircGuard
• Air Purge: Automatic
• Check Valve: Included
• Insulation Shell: Included
• Bluetooth Communication: Yes
• 0-10V Input: Yes
• Temperature Control: Yes
• eAdapt Auto Learn and Night Mode: Yes
• Digital Display: Yes
