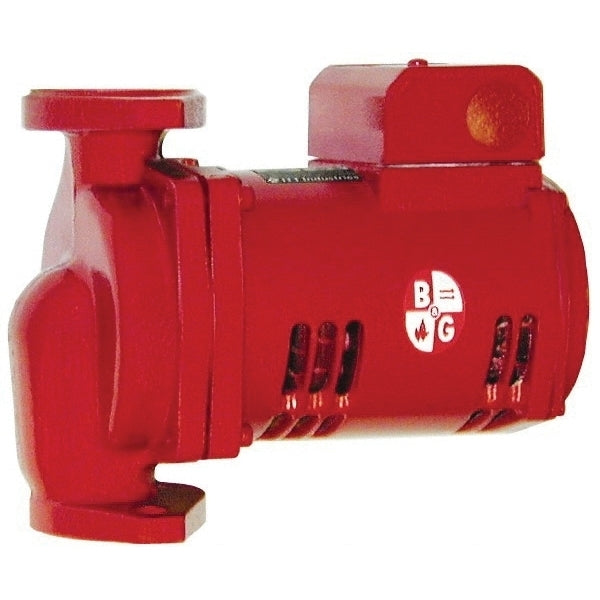

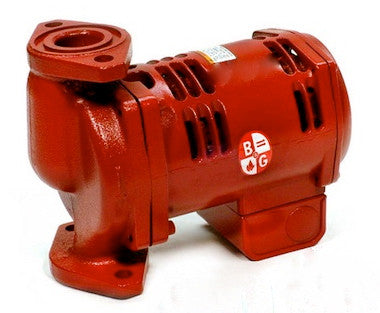

Mcdonnell & Miller 1BL034 Bell & Gossett PL-75 1/6 hp Motor

Product Description

The McDonnell & Miller 1BL034 Bell & Gossett PL-75 1/6 HP Motor is designed for hydronic heating and cooling in closed loop systems. This Bell & Gossett Series PL-75 model is permanently lubricated with a 1/6 HP, 3400 RPM, 115v single phase motor. It is 25% more efficient than competition with a dry-motor design that delivers exceptional performance.

• Designed for residential and light commercial heating and potable water systems.
• Features a precision-machined and balanced alloy steel rotor.
• Equipped with a tough, durable seal system featuring a carbon/silicon carbide seal on a stainless steel shaft sleeve.

Product Highlights

This motor features a maintenance-free system with a self-cleaning particle shield, and is able to handle difficult water conditions at a wide range of temperatures.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Manufacturer Part Number: 1BL034

Technical Specifications

• Maximum Working Pressure: 150 PSI (10.3 bar)
• Maximum Operating Temperature: 225*F (107*C)
• Manufacturer (Brand): Bell & Gossett
• Bell & Gossett Series: Series PL
• Model: PL-75
• MPN (Manufacturer Part Number): 1BL034
• Pump Type: Booster
• Mounting Type: In-Line
• Construction: Cast Iron
• Connection Size: 2"
• Connection Type: Flanged
• Flanges Included: No
• Motor HP: 1/6 HP
• Motor RPM: 3400 RPM
• Voltage: 115v
• Motor Phase: Single
• Hertz: 60Hz
• Application: Heating & Cooling
