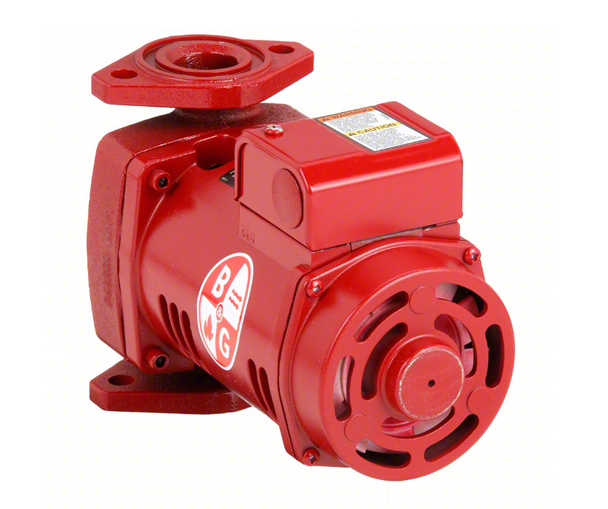

Mcdonnell & Miller 1BL032 Bell & Gossett PL-55 Pump 2/5 HP Motor

Product Description

The McDonnell & Miller 1BL032 Bell & Gossett PL-55 Pump features a 2/5 HP motor designed for hydronic heating and cooling in closed loop systems. The Model PL-55 is permanently lubricated with a 2/5 HP, 3250 RPM, 115v single phase motor. It is suitable for residential and light commercial heating and potable water systems. Flanges are available separately in 3/4" through 1-1/2" IPS.

• B&G’s powerful, dry-motor design delivers exceptional performance.
• Features a precision-machined and balanced alloy steel rotor.
• Advanced close-coupled design increases pump life and efficiency.

Product Highlights

The Bell & Gossett PL-55 pump is maintenance free and features a tough, durable seal system for long life and rugged operation.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Manufacturer Part Number: 1BL032

Technical Specifications

• Maximum Working Pressure: 150 PSI (10.3 bar)
• Maximum Operating Temperature: 225*F (107*C)
