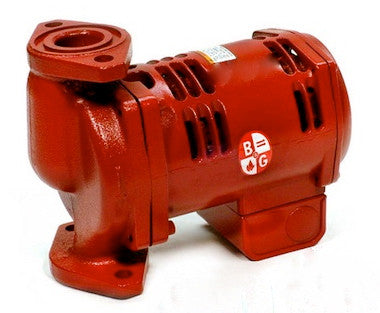

Mcdonnell & Miller 1BL012 Bell & Gossett PL-30 Pump 1/12 hp Motor

Product Description

The McDonnell & Miller 1BL012 Bell & Gossett PL-30 Pump features a 1/12 HP motor designed for hydronic heating and cooling in closed loop systems. This Bell & Gossett Series PL-30 model is permanently lubricated and operates at 2650 RPM with a 115v single phase motor. It is suitable for residential and light commercial heating and potable water systems.

• Designed for hydronic heating and cooling in closed loop systems
• Features a powerful, dry-motor design for exceptional performance
• Advanced close-coupled design increases pump life and efficiency

Product Highlights

The pump is permanently lubricated and maintenance free. It has a maximum working pressure of 150 PSI and a maximum operating temperature of 225°F.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Manufacturer Part Number: 1BL012

Technical Specifications

• Motor: 1/12 HP
• RPM: 2650
• Voltage: 115v
• Phase: Single Phase
• Flange Size: 3/4" through 1-1/2" NPT
• Maximum Working Pressure: 150 PSI (10.3 bar)
• Maximum Operating Temperature: 225*F (107*C)
