McDonnell & Miller 179526 Remote Sensor 3 Level 4 in Replacement MPN

Product Description

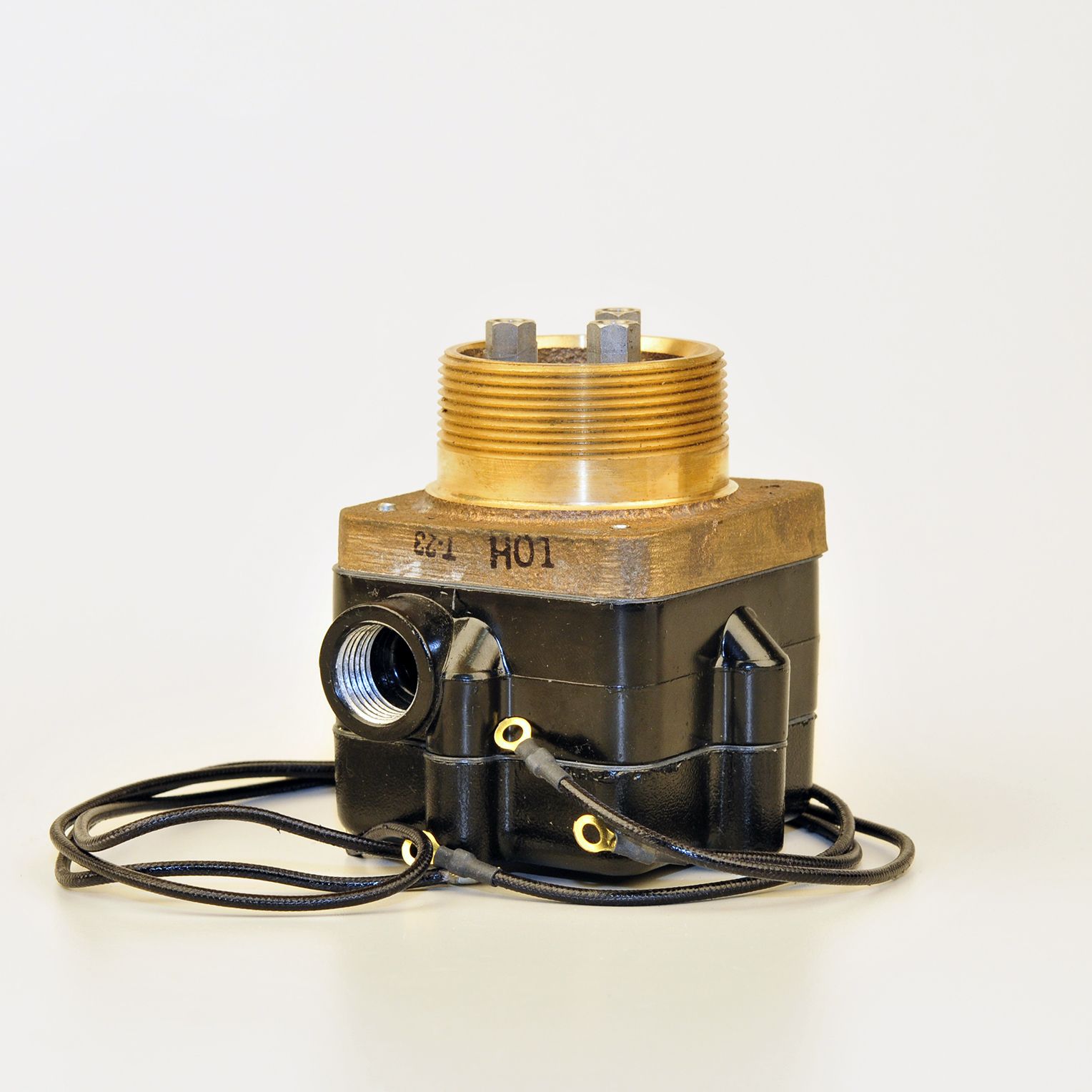

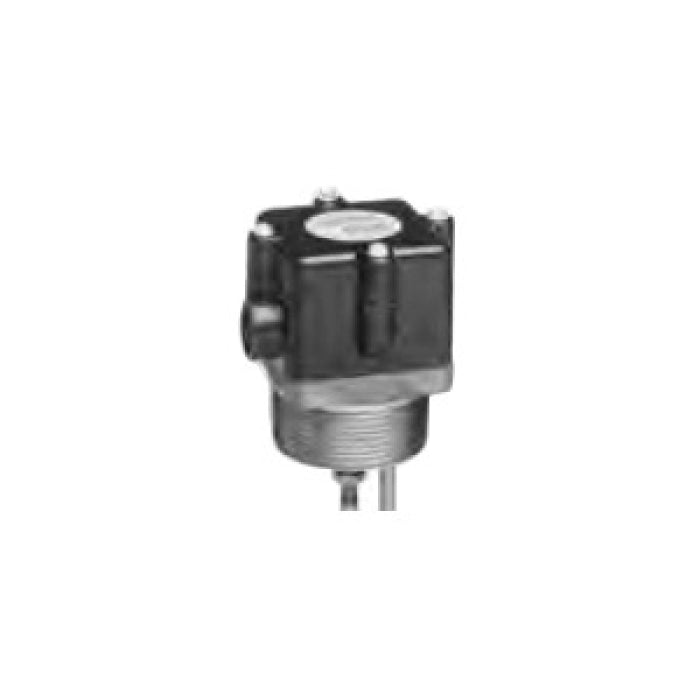

The McDonnell & Miller model 179526 is a remote sensor designed for three-level measurement. It features three probes and is four inches long. This sensor is suitable for use with conductance actuated controls.

• NEMA 4X enclosure for durability
• Compatible with steam and hot water boilers
• Probes must be ordered separately based on required length

Product Highlights

This device is ideal for high-pressure applications. It can work in environments with temperatures up to four hundred six degrees Fahrenheit and pressures reaching two hundred fifty psi.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 179526

Technical Specifications

• Series: Series RS
• Dimensions: 4 inches long
• Number of Probes: 3
• Suitable For Use With: Conductance Actuated Controls
• Type: 3 Level
• Max Temperature: 406 degrees Fahrenheit
• Max Water Pressure: 250 psi
• Max Steam Pressure: 250 psi
• Ohms Sensitivity: 20,000 ohm
