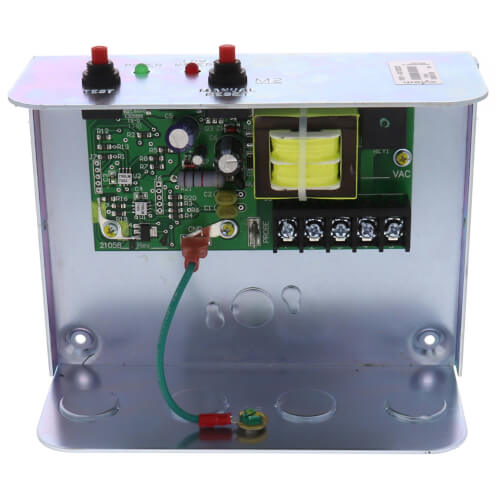

McDonnell & Miller 176234 LWCO Probe Control 120V Size 3/4 Inch

Product Description

Enhance boiler safety with the McDonnell & Miller 176234 Low Water Cut-Off Control. Designed for reliability in commercial and industrial hot water and steam boilers, this electronic control unit is integral for boiler safety.

• LED indicators for system status and diagnostics.
• Manual reset and test button features.
• ASME CSD-1 compliant, ensuring high standards.

Product Highlights

This low water cut-off probe control unit features a 120 VAC operation and is easy to install with NPT connections. It is designed for continuous monitoring with a 20,000 ohm probe sensitivity.

Product Information

Standard Information

• Brand: McDonnell & Miller�li>
• MPN: 176234
• Type: Electronic Low Water Cut-Off

Technical Specifications

• Connection Type: NPT
• Dimension: 6-5/8 in L x 2-3/4 in W x 5-5/16 in H
• Included Components: Standard Probe
• Pressure Rating: 15 psi Steam, 160 psi Water
• Voltage Rating: 120 VAC
• Temperature Rating: 32 - 120 deg F Ambient, -40 to 120 deg F Storage, 250 deg F Water
• Applications: For hot water and steam boilers
• Standards/Certifications: ASME CSD-1, cULus listed
