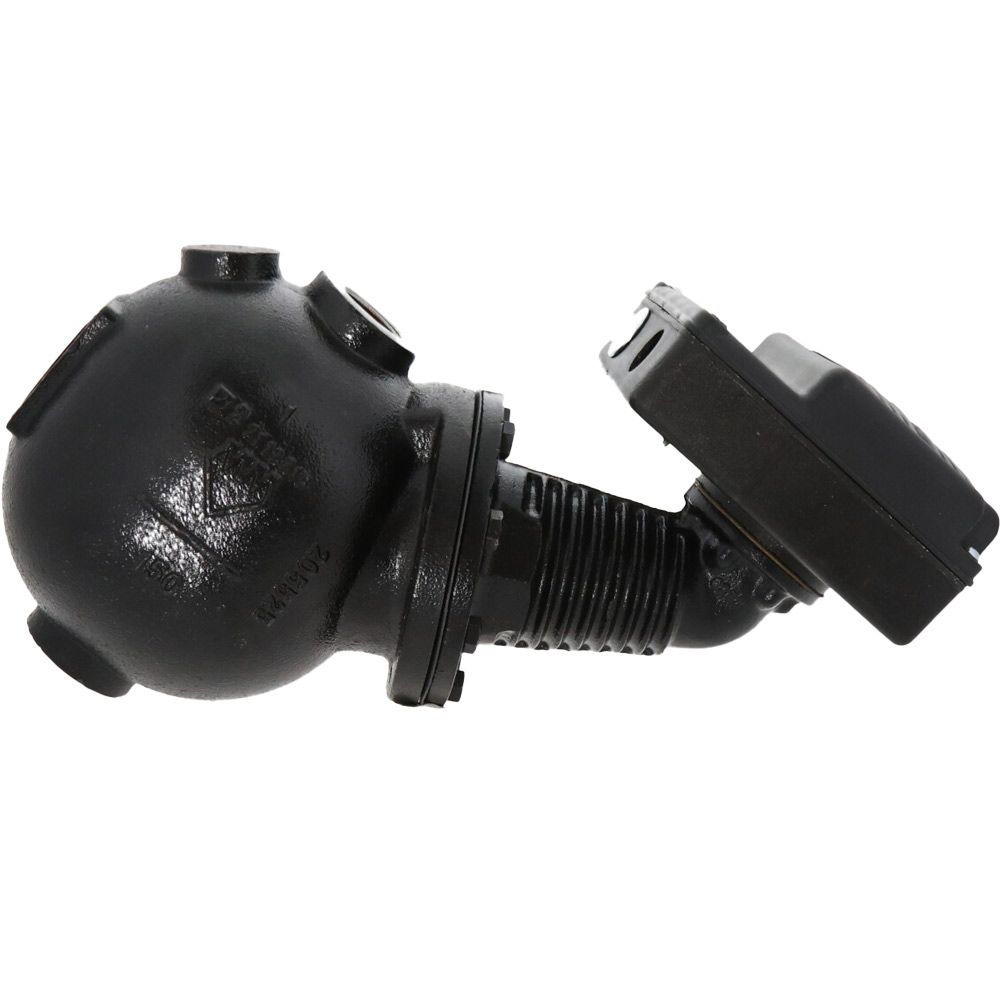

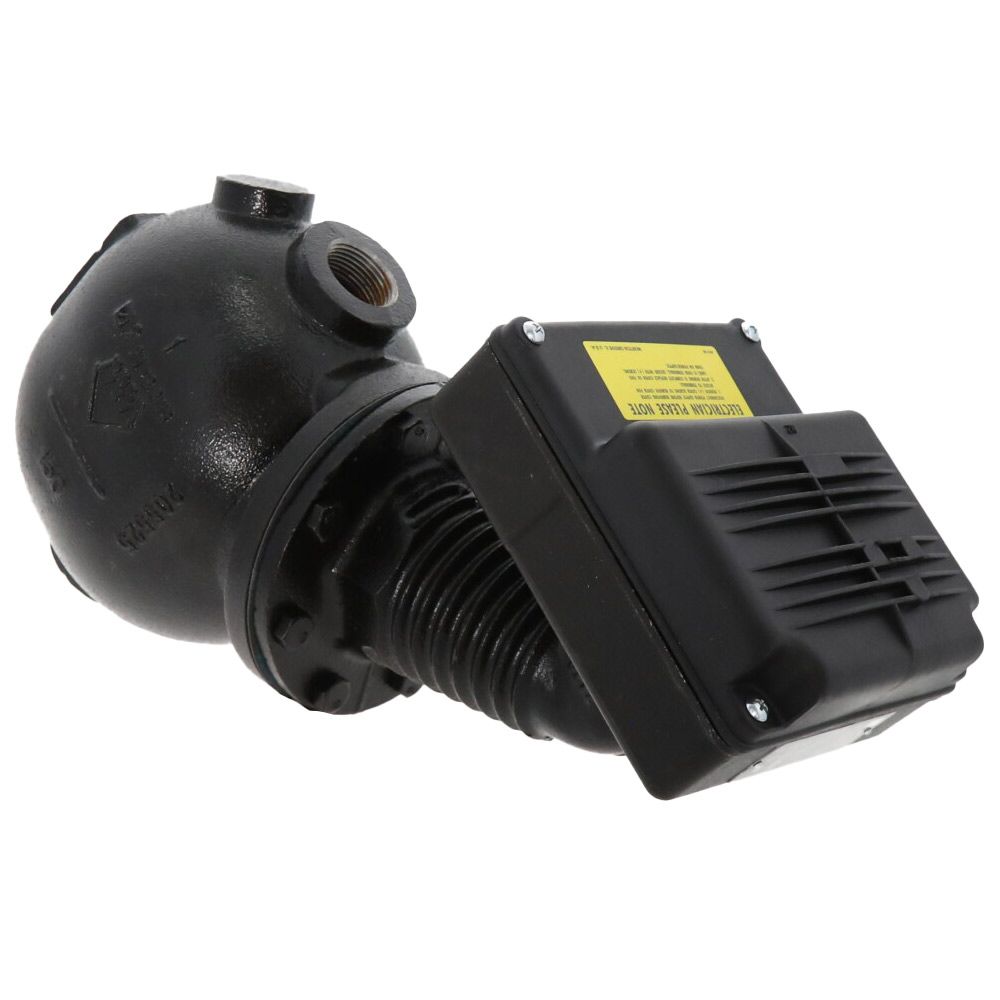

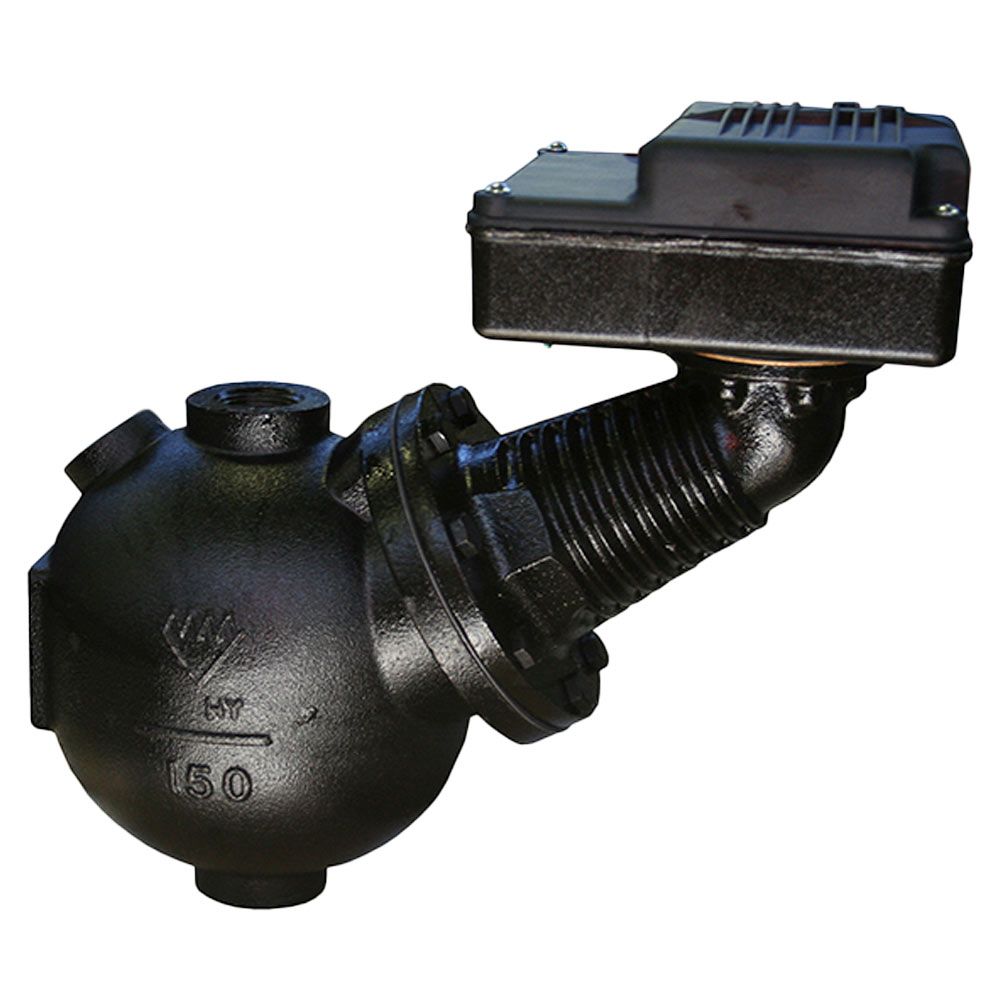

McDonnell & Miller 171702 150S Mechanical Combination Low Water Cut-Off/Pump Controller - (Steam)

Product Description

Explore the McDonnell & Miller 171702, a robust mechanical combination low water cut-off and pump controller. Designed for both commercial and industrial boiler applications, this unit features a maximum pressure capacity of 150 psi.

• Features Monel bellows for optimal corrosion resistance.
• Incorporates snap action switches to withstand high temperatures.
• Equipped for boilers of any capacity with SPST and SPDT switches for multifunctional control.

Product Highlights

This device is not only efficient but also versatile, complying with UL, CSA, and FM standards, making it suitable for a variety of boiler systems.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 171702

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 7.4 A at 120 V and 3.7 A at 240 V Full Load; 44.4 A at 120 V and 22.2 A at 240 V Locked Load
• Model: 150S
• Connection Type: NPT
• Dimension: 13-1/4 inches L x 6 inches W x 12-7/16 inches H
• Pressure Rating: 150 psi
• Size: 1 inch
• Type: Mechanical
• VA Rating: 345 VA Pilot-Duty
• Weight: 24.77
