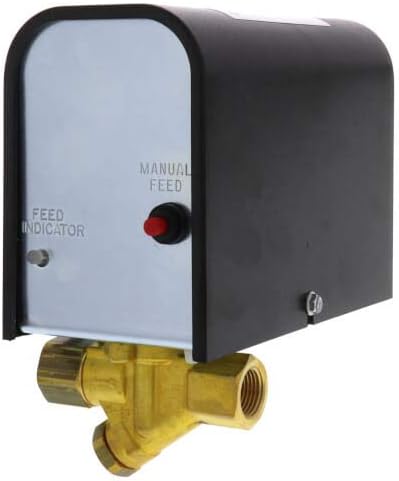

McDonnell & Miller 169550 WFE-24V, Uni-Match Universal Water Feeder (24V)

Product Description

The McDonnell & Miller 169550 WFE-24V is a Uni-Match Universal Water Feeder designed for low pressure steam boilers. This 24-volt electric water feeder is effective for residential and small commercial applications. It operates automatically, adding water when needed to maintain system pressure and prevent dry fire conditions. The feeder's compact design allows for easy installation with both probe- and float-type low water cut-offs.

• Multi-color LED status indicator
• Four position on/off dip switch
• Compatible with boiler pressures up to fifteen psi

Product Highlights

This water feeder continuously monitors water levels and ensures the boiler maintains a safe operating minimum level.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 169550

Technical Specifications

• Voltage: 24V
• Max Water Pressure: 150 psi
• Max Boiler Pressure: 15 psi
• Max Water Temperature: 120°F
• Connection Size: 3/8 NPT
• Feed Rate: Configurable at 1, 2, or 4 GPM
