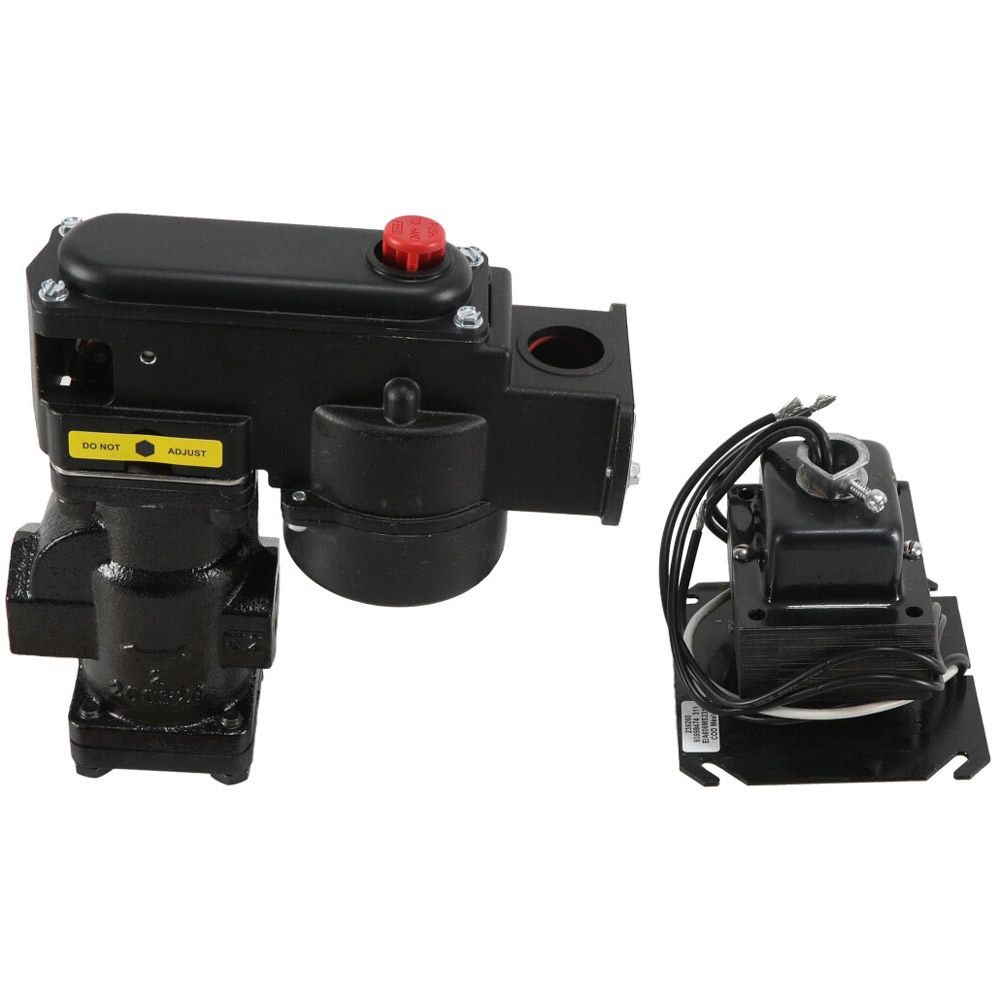

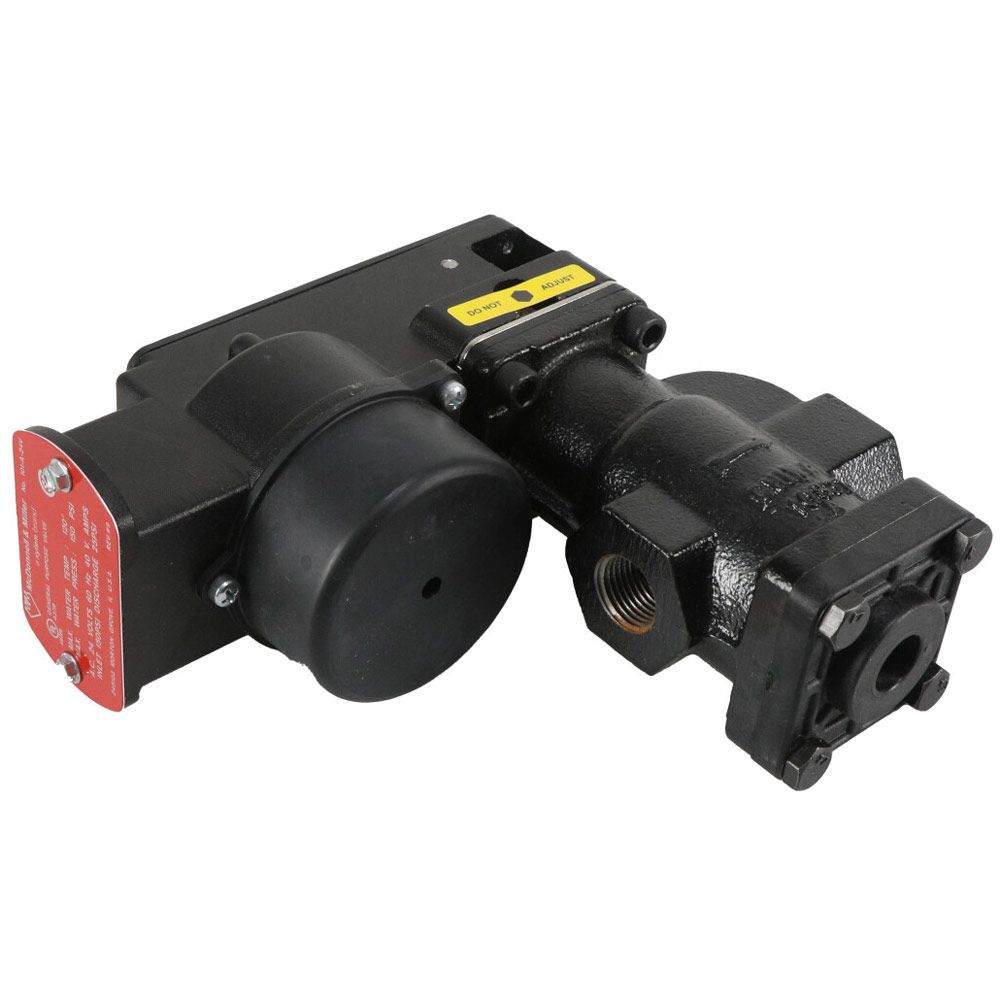

McDonnell & Miller 169500 101A-24V Electric Water Feeder (24V)

Product Description

The McDonnell & Miller 169500 is a 24V Electric Water Feeder designed for low pressure steam boilers. This model is essential for maintaining proper water levels without manual intervention.

• Automatically controls water feed to low pressure steam boilers.
• Compatible with mechanical or electronic low water cut-off controls.
• Features quick-change cartridge valve and strainer for easy maintenance.

Product Highlights

Efficiently replaces manual water addition for reliable boiler operation.

Product Information

Standard Information

• Manufacturer: McDonnell & Miller
• Model: 101A-24V

Technical Specifications

• Voltage Rating: 24 V
• Max Water Pressure: 150 psi
• Max Boiler Pressure: 25 psi
• Connection Size: 1/2 inches
• Connection Type: NPT
• Dimensions: 6-7/8 inches W x 7-9/16 inches H
• Max Inlet Water Temperature: 120 degrees F
• Certifications: UL listed, CSA certified
• Applications: Ideal for low pressure steam boilers
