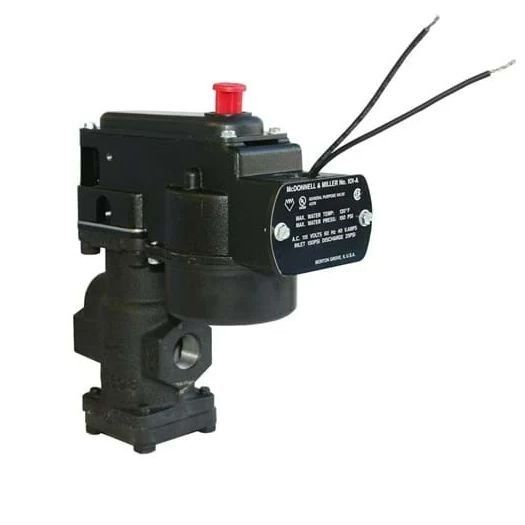

McDonnell & Miller 169400 101A-120V Electric Water Feeder 120V

Product Description

The McDonnell & Miller 169400 model is a 120V electric water feeder designed for low pressure steam boilers. This device automates the water feed to boilers, enhancing reliability and efficiency. The unit is compatible with both mechanical and electronic low water cut-off controls.

• Simplifies maintenance with quick-change replaceable cartridge valve and strainer
• Features a manual feed button for manual operations
• Incorporates a 120 VAC solenoid for operational excellence

Product Highlights

With a maximum boiler pressure of 25 psi and a water supply pressure up to 150 psi, the McDonnell & Miller 169400 is robust for a variety of settings. It supports maximum inlet water temperatures up to 120 degrees F. The design includes a manual feed button and a quick-change cartridge valve and strainer which are easy to maintain.

Technical Specifications

• Application: Steam Boilers
• Type: Electronic
• Max Pressure (PSI): 150
• Max Boiler Pressure: 25 psi
• Reset Type: Automatic
• Max Inlet Water Temp (F): 120°F
• Voltage: 120V
• Connection Type: Threaded
• Size: 1/2 inch
