McDonnell & Miller 166000 94-M-HD - Head Assembly for Combo Low Water Cut-Off & Pump Controller w/ Manual Reset

Product Description

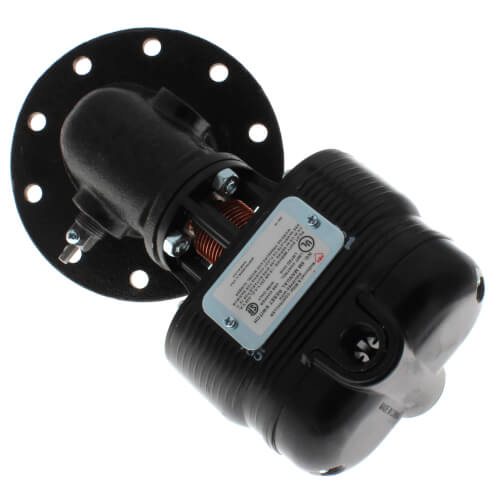

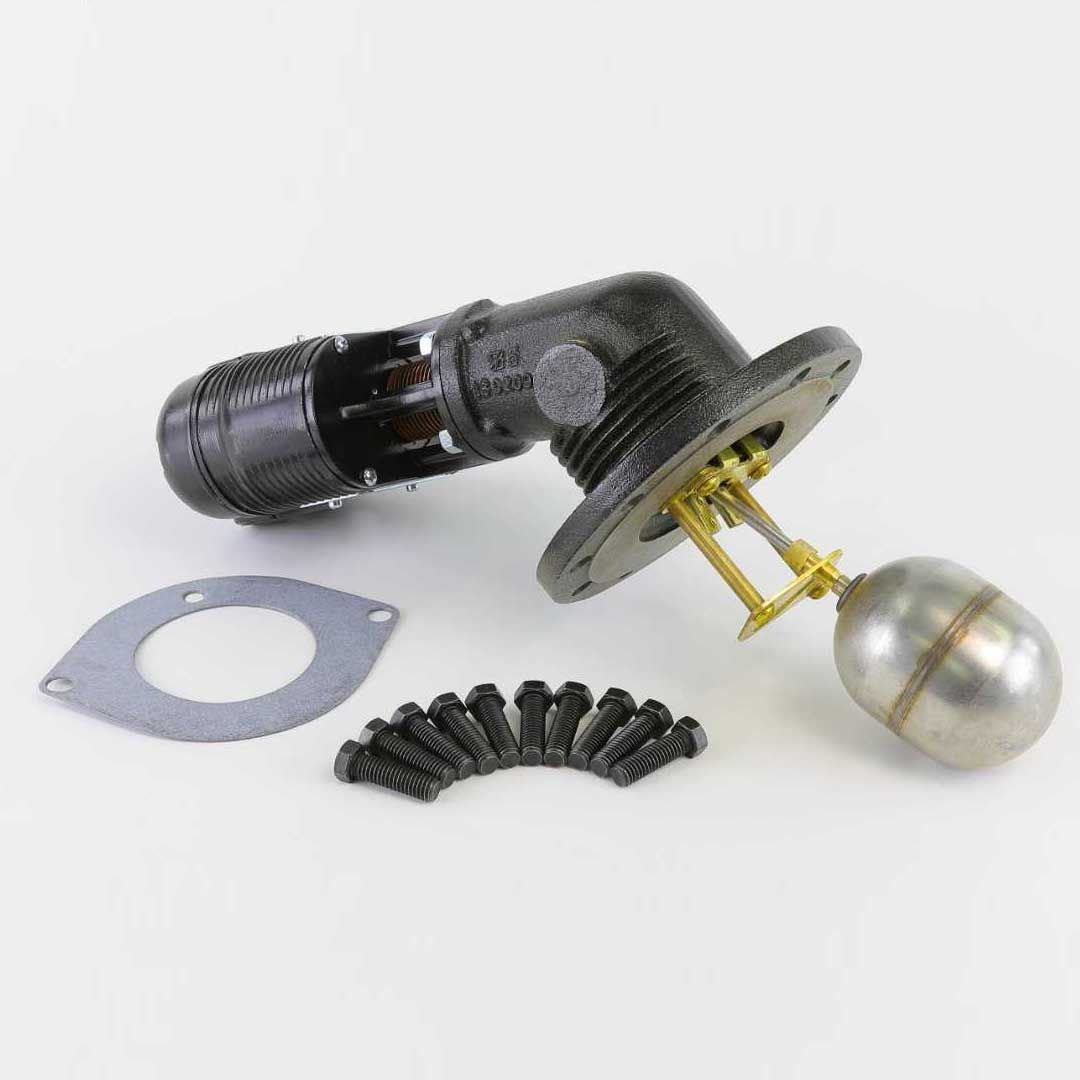

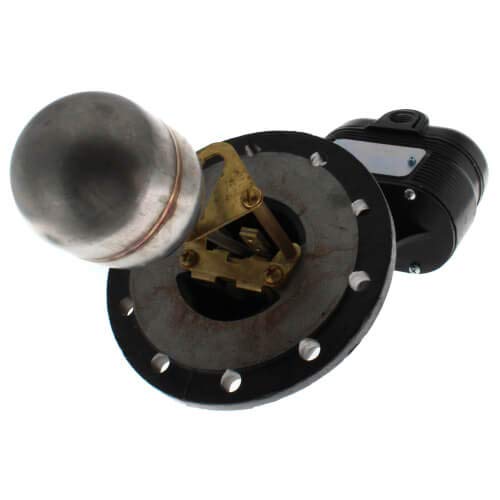

The McDonnell & Miller 166000 is a head assembly designed for the Model 94-M combination low water cut-off and pump controller. This head mechanism features a manual reset and includes all necessary components for installation except for the float chamber. It allows for efficient replacement without needing to disturb existing piping systems.

• Manual reset functionality
• Compatible with Model 94-M and 194 Series
• Easy installation without disrupting piping

Product Highlights

This head assembly is suitable for use in steam systems and serves as a vital replacement part for low water cut-off applications.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 166000

Technical Specifications

• Model: 94-M-HD
• UPC: 751875004128
• Weight: 15.00 lbs
• Used With: 194 Series, 94 Series
• Reset Type: Manual
• Application: Replacement Part
• Shipping Dimensions: 19.7 x 15.95 x 10.1 inches
