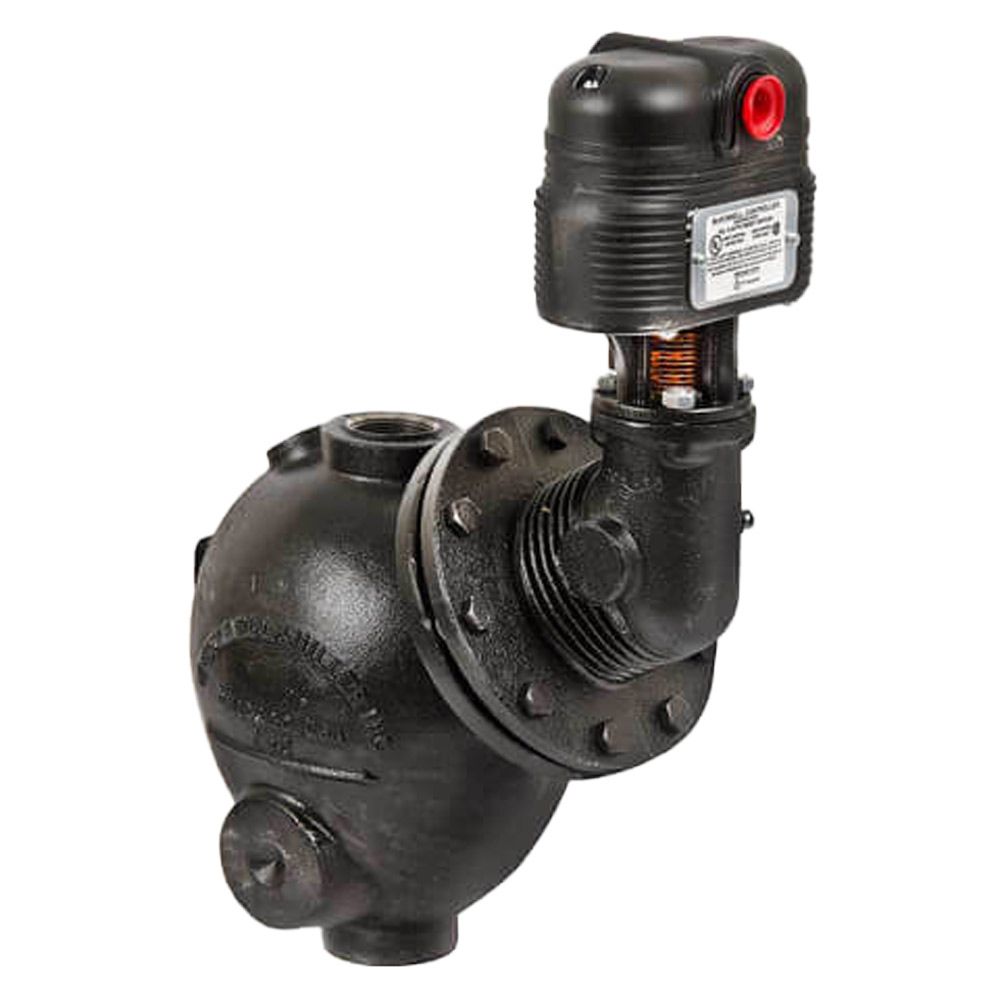

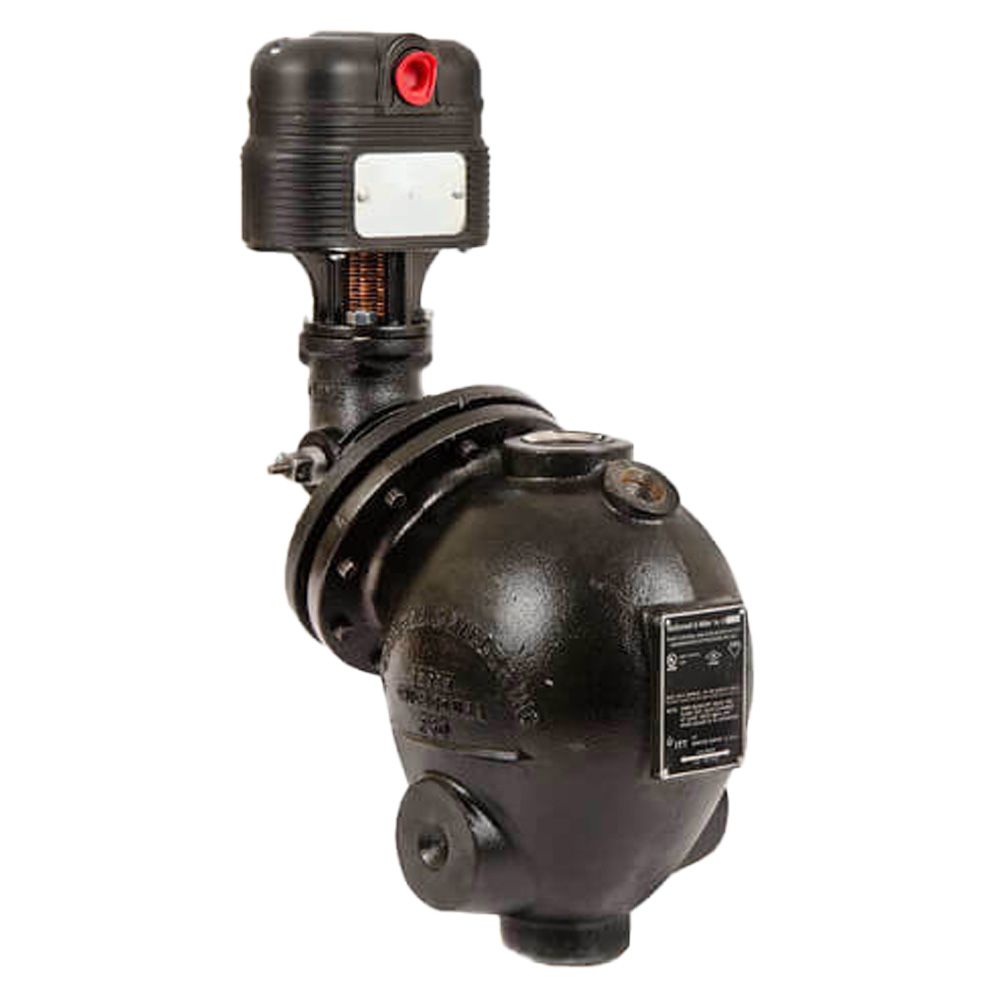

McDonnell Miller 165200 Low Water Cut-Off 345 VA at 120 or 240 VAC

Product Description

The McDonnell & Miller 165200 is a robust low water cut-off and pump controller designed to support the demanding needs of commercial and industrial steam boilers. This mechanical system ensures consistent water level, irrespective of the boiler pressure, and offers a maximum pressure limit of 250 psi.

• Includes No.5 switch for effective operation
• Boasts magnetic repulsion to negate the need for bellows
• Equipped with a manual reset feature for heightened control

Product Highlights

The device is integral for maintaining the optimal operation of boilers of any steaming capacity. It includes a 7B switch which provides a 135 Ohm proportional control signal to keep the water level consistent.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 165200
• Series: 94

Technical Specifications

• Pressure Rating: 250 psi
• VA Rating: 345 VA at 120 or 240 VAC
• Dimensions: 18-13/16 inches Height
• Standards/Certifications: UL listed, CSA certified, FM approved
• Applications: For commercial and industrial low or high pressure steam boilers
