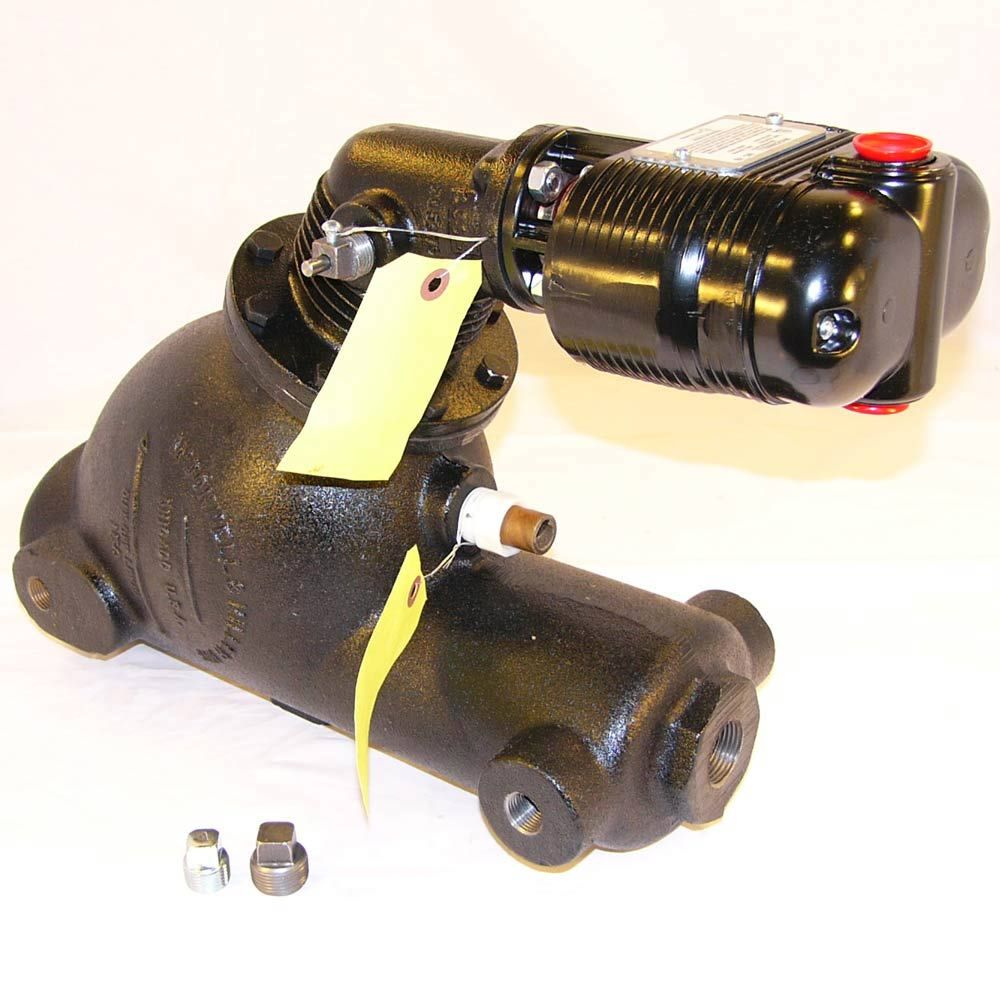

MCDONNELL MILLER 164400 Low Water Cut-Off and Pump Controller 193-7B for Steam Boilers

Product Description

The McDonnell Miller Model 193-7B serves as both a low water cut-off and a pump controller for steam boilers, ensuring efficient and safe boiler operations. This unit is equipped with a 7B switch for precise boiler water level control and features automatic reset functionality.

• Designed for commercial and industrial steam boiler applications.
• Easy installation with 1 inch NPT connections and built-in provisions for gauge glass and tri-cocks.
• Capable of handling pressures up to 150 psi.

Product Highlights

This dual-function device offers robust performance with its float-operated design and 7B proportional control switch that maintains consistent boiler water levels.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 164400
• Model: 193-7B

Technical Specifications

• Application: Steam Boilers
• Control Reset: Automatic
• Voltage: 120V, 240V
• Max Pressure: 150 psi
• Control Connection: NPT
• Installation Method: 1 inch Equalizing Piping
