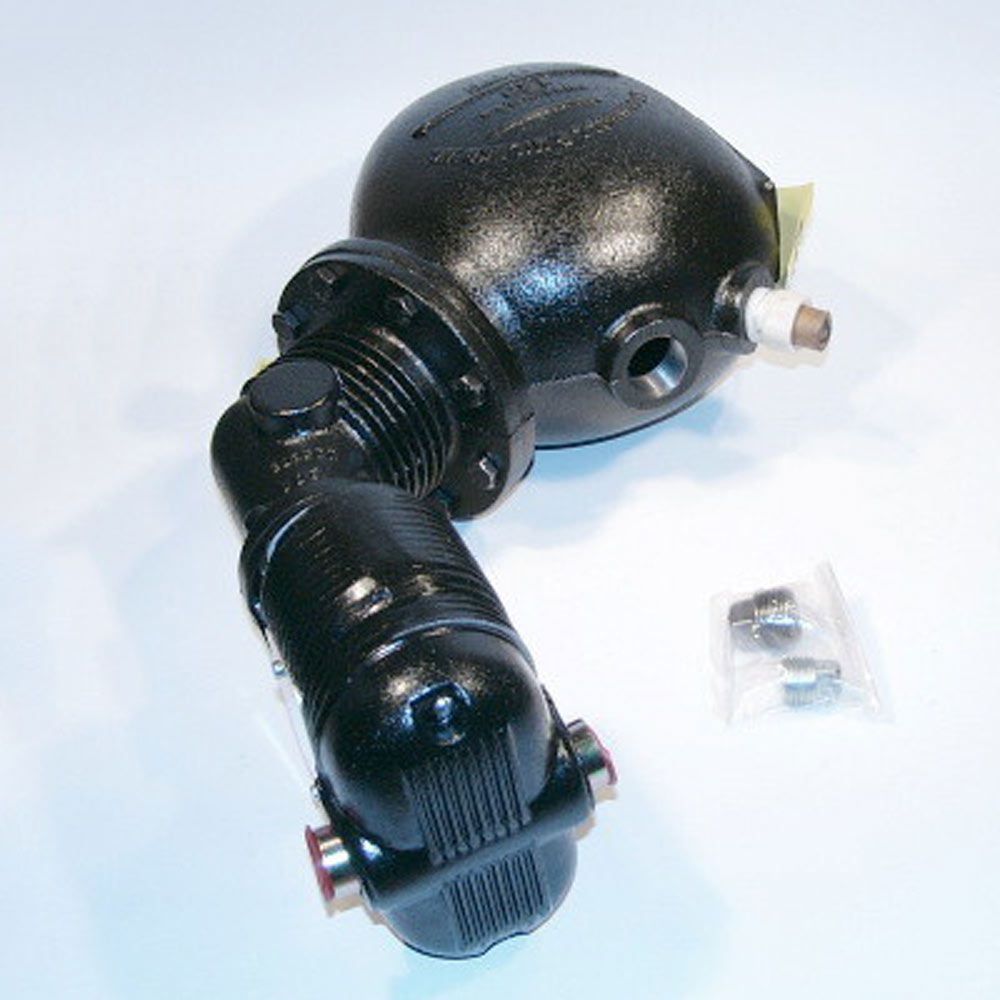

MCDONNELL & MILLER 163000 Low Water Cut-Off & Pump Controller 120V, 240V Series 93

Product Description

The McDonnell & Miller 93-7B Low Water Cut-Off & Pump Controller, model 163000, is adept at ensuring the safety and efficiency of steam boilers. This device integrates both low water cut-off and pump controller functionality with automatic reset, making it a reliable addition to boiler systems operating up to 150 psi.

• Equipped with dual voltage (120V and 240V) capabilities for versatile setup.
• Features 1 inch NPT pipe connections for straightforward installation.
• Supports a maximum pressure of 150 psi, suitable for various commercial and industrial applications.

Product Highlights

The unit features a float-type mechanism designed for both low or high-pressure steam boilers, enhancing operational reliability by maintaining consistent water levels regardless of pressure variations.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 163000
• Series: 93

Technical Specifications

• Voltage: 120V, 240V
• Connection Size: 1 inch
• Control Connection: NPT
• Max Pressure: 150 psi
• Installation Method: Equalizing Piping
