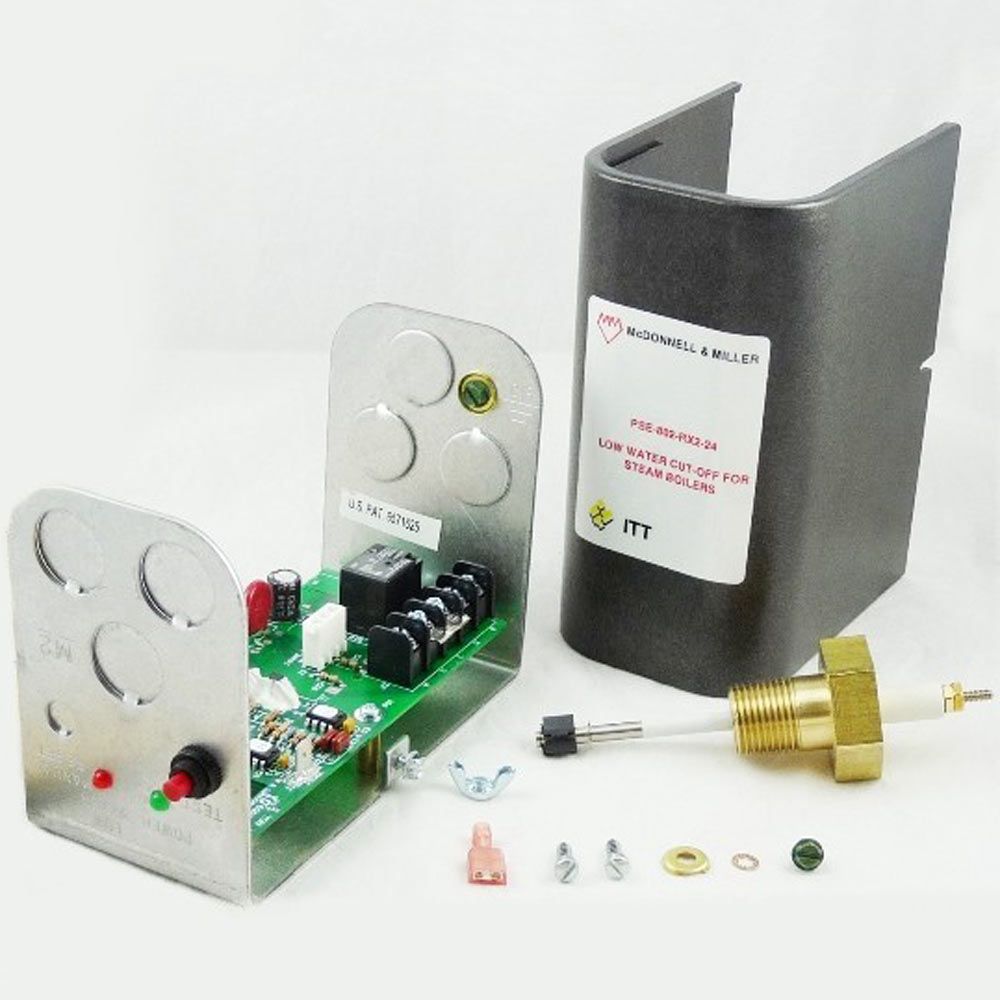

McDonnell & Miller 153929 PSE-802-RX2-24 Low Water Cut-Off

Product Description

McDonnell & Miller presents the model PSE-802-RX2-24, a low water cut-off control unit designed for steam boilers. This electronic control unit operates at twenty-four volts and includes a remote sensor. It features an automatic reset and has a test switch along with an LED indicator light to show low water levels. This unit works effectively at a maximum water temperature of two hundred fifty degrees Fahrenheit and a maximum steam pressure of fifteen psi. The compact design includes half-inch MIP connections.

• Automatic reset feature
• LED low water indicator light
• Compatible with steam boilers

Product Highlights

This low water cut-off is essential for maintaining safe operating conditions in steam boilers, preventing damage due to low water levels.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Model: PSE-802-RX2-24

Technical Specifications

• MPN: 153929
• UPC: 751875221716
• Application: Steam Boilers
• Connection Size: 1/2 inch
• Control Connection: NPT
• Max Steam Pressure: 15 psi
• Max Water Temp: 250 degrees Fahrenheit
• Max Ambient Temp: 120 degrees Fahrenheit
• Voltage: 24V
• Installation Method: Direct to Boiler Tappings
• Control Reset: Automatic
• Enclosure: NEMA 1
• Ohms Sensitivity: 7,000 ohm
• Replaces: 153914
• Weight: 2.08 pounds
