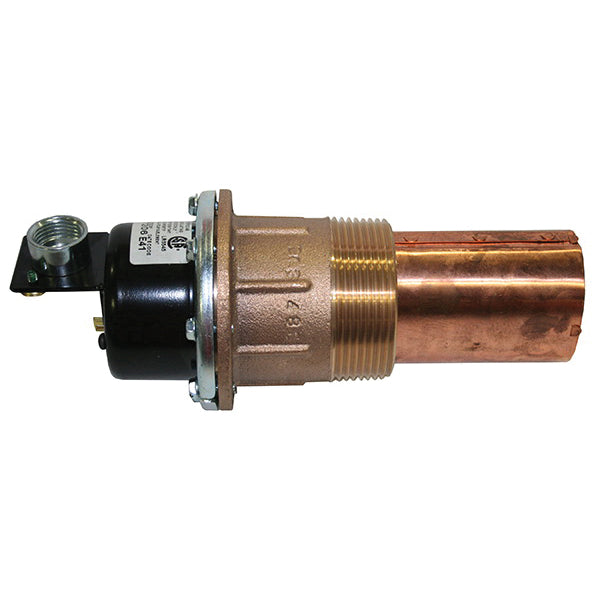

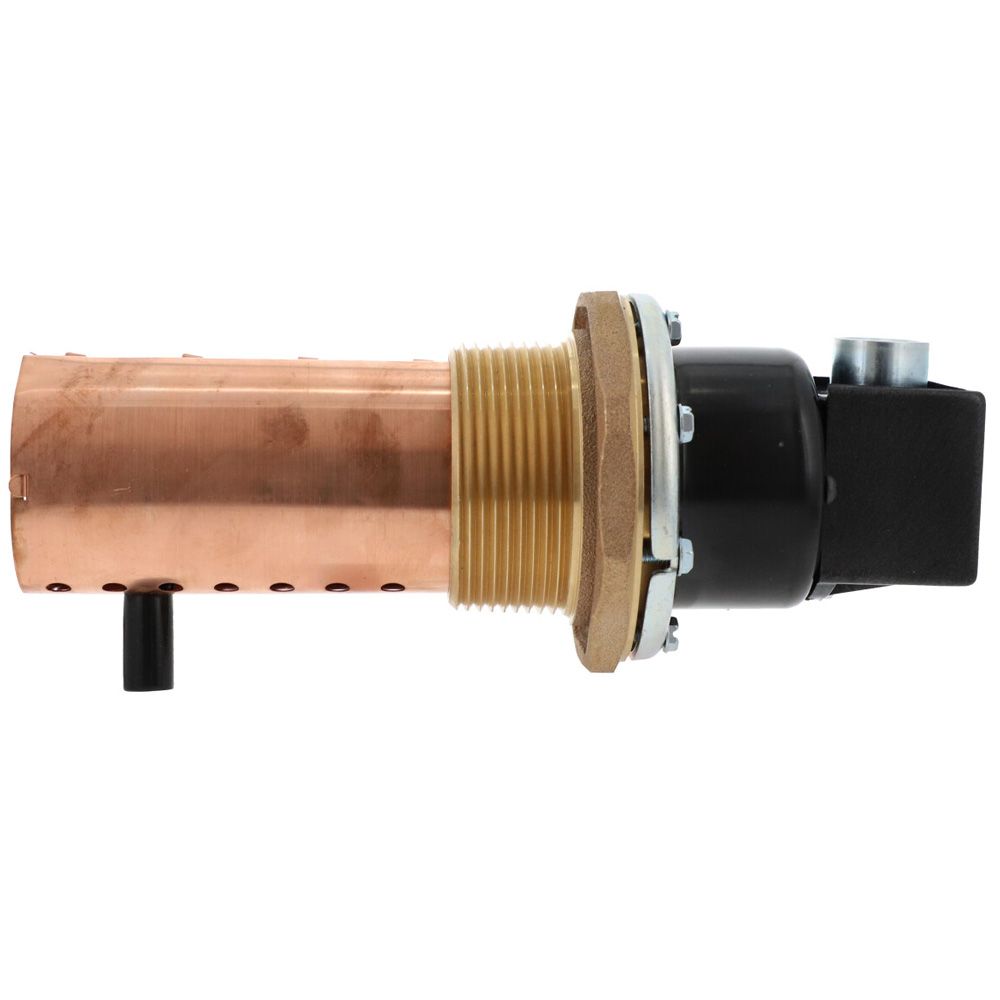

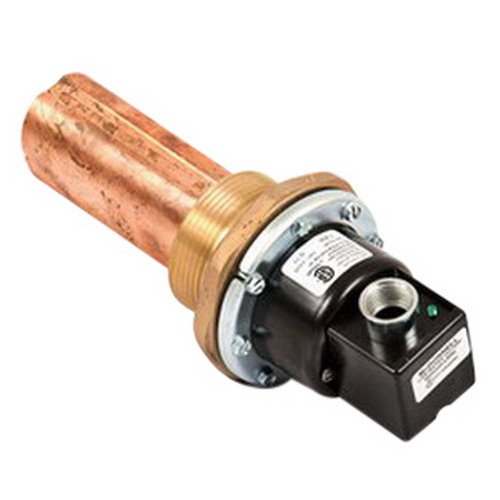

McDonnell & Miller 153900 Low Water Cut-Off Boiler Control 69 Series

Product Description

The McDonnell & Miller 153900 is a reliable low water cut-off boiler control, essential for maintaining your boiler's operation. This mechanical model, part of the 69 Series, is specifically designed for residential and commercial low pressure steam boilers, providing peace of mind with its robust functionality.

• Adaptable BX outlet makes installation straightforward and adjustable to your setup.
• Features dual precision switches ensuring reliable operation of the low water cut-off and auxiliary functions.
• Equipped with a non-wearing packless bellows design to enhance product longevity and performance.

Product Highlights

The unit is UL listed, CSA certified, and FM approved, ensuring compliance with relevant standards for safety and performance. Installation is facilitated by a 4-1/8 inch insertion length into 2-1/2 inch NPT boiler side tappings, compatible with boilers of any steaming capacity.

Technical Specifications

• Model: 69
• Type: Mechanical
• Connection Type: NPT
• Insertion Length: 4-1/8 inches
• Pressure Rating: 20 psi
• Voltage Rating: 120/240 VAC
• Amperage Rating: 7.4 A at 120 V and 3.7 A at 240 V full load; 44.4 A at 120 V and 22.2 A at 240 V load locked
• Weight: 3.88 lbs
