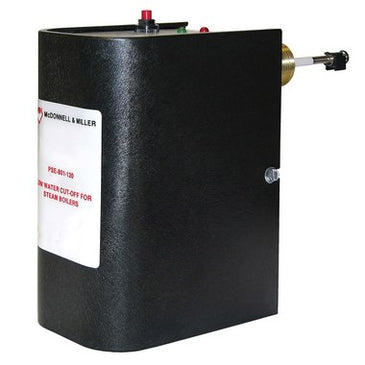

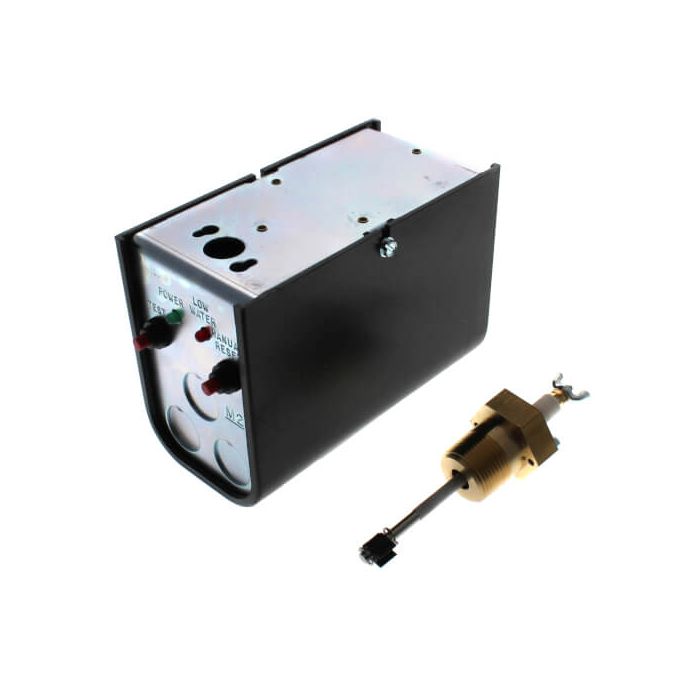

MCDONNELL & MILLER 153601 PSE-801-M-120 Electronic 120V Low Water Cut-Off

Product Description

The McDonnell & Miller 153601 PSE-801-M-120 is an electronic probe type low water cut-off designed for use with steam boilers and hot water heating boilers. This model serves as a secondary low water cut-off on steam boilers and can also be used as a primary cut-off for hot water systems. The self-cleaning probe feature minimizes maintenance, allowing for maintenance only every five years rather than annually. This product meets the ASME Standard CSD-1 requirements.

• Functions as secondary LWCO on steam boilers and primary on hot water boilers.
• Self-cleaning probe reduces maintenance needs to once every five years.
• Manual reset design adheres to ASME Standard CSD-1.

Product Highlights

This electronic low water cut-off provides reliable operation for boiler control applications, ensuring safety and compliance.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Application: Boiler Control

Technical Specifications

• MPN: PSE-801-M-120
• Manufacturer Part Number: PSE-801-M-120
• UPC: 751875536018
• Item Number: 153601
• End Connection: Threaded
• Height: 5-13/16 inches
• Pressure: 15 PSI
• Product Type: Electronic with Manual Reset
• Service: Steam
• Voltage: 120 VAC
• Width: 2-7/8 inches
