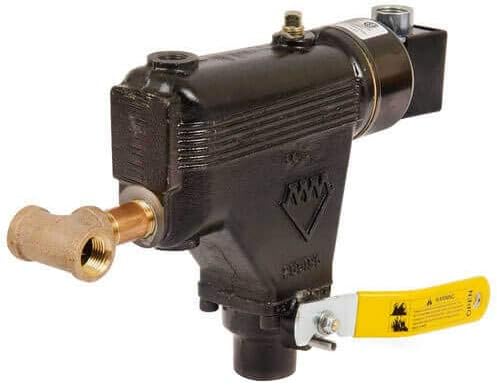

Mcdonnell & Miller 149600 67-G, 67 Float Type Low Water Cut-off for millivolt service (Steam)

Product Description

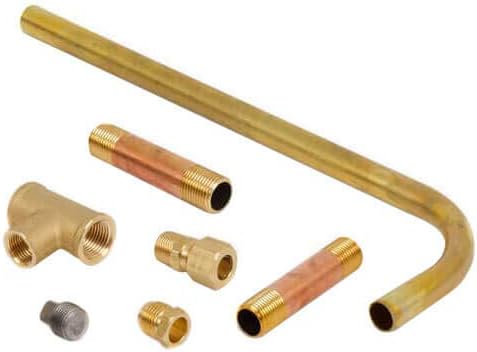

The McDonnell & Miller 149600 is a float type low water cut-off designed for millivolt service in steam applications. This device is suitable for use in both residential and commercial settings. It is compatible with boilers of all steaming capacities. The unit features quick hook-up fittings for simple installation.

• Compatible with steam boilers
• Lever-operated full port ball valve included
• Automatic reset type for dependable function

Product Highlights

This low water cut-off ensures that water levels are adequately maintained. It includes a dual precision switch that operates both the low water cut-off and the alarm or electric water feeder. The large float chamber helps maintain functionality under a maximum steam pressure of twenty psi.

Product Information

Standard Information

• Application: Steam Boilers
• Switch Type: Millivolt

Technical Specifications

• Maximum Pressure: 20 psi
• Type: Float-Style
• Reset Type: Automatic
• Electrical Ratings (AFL): 7.4 A @ 120 Vac
• Electrical Ratings (ALR): 44.4 A @ 120 Vac
• Pilot Duty Rating: 125 VA
