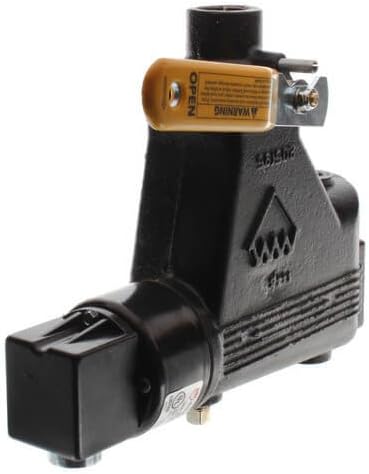

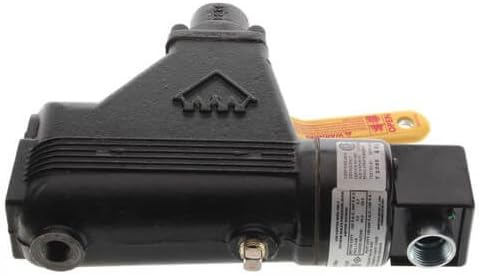

Mcdonnell & Miller 149500 67-LQHU Float Type Low Water Cut-off without quick hook-up fittings (Steam)

Product Description

The McDonnell & Miller 149500, 67-LQHU Float Type Low Water Cut-off is built for both residential and commercial applications. This cut-off device is compatible with boilers of any steaming capacity. It features a lever-operated, full port ball valve which allows easy blow down and an adjustable BX outlet for straightforward installation. The dual precision switches ensure reliable operation for the low water cut-off, alarm, or electric water feeder. It has a large float chamber and supports a maximum steam pressure of twenty psi.

• Lever-operated full port ball valve
• Adjustable BX outlet for installation
• Maximum steam pressure: 20 psi

Product Highlights

This product is suitable for a variety of steam boilers and includes optional features such as low voltage switches for self-generating millivolt circuits and a manual reset switch.

Product Information

Standard Information

• Manufacturer: McDonnell & Miller
• Part Number: 149500

Technical Specifications

• Float Type: Float-Style
• Max Pressure: 20 PSI
• Electrical Ratings: 3.7 A @ 120 VAC, 22.2 A @ 240 VAC
• Shipping Dimensions: 13.95 inches (depth) x 10 inches (width) x 5.85 inches (height)
• Weight: 9.415 lbs
• Features: Quick Hook-Up Fittings
