Mcdonnell & Miller 149400 67 Low Water Cut Off with Manual Reset Switch Residential Commercial Steam Boilers

Product Description

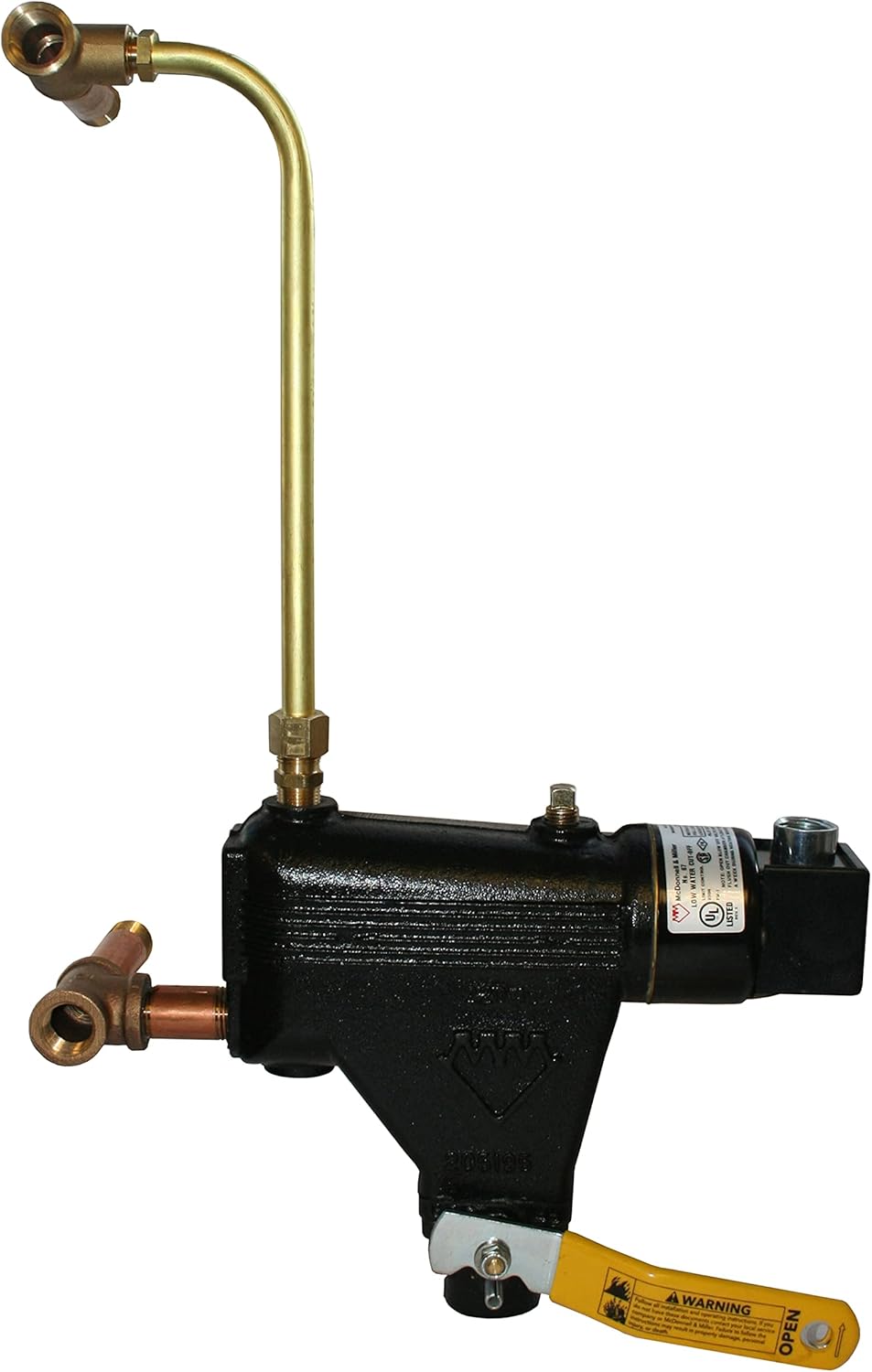

The McDonnell & Miller 67 Low Water Cut Off with Manual Reset Switch is a reliable device designed for residential and commercial steam boilers. Manufactured by McDonnell & Miller, this unit is identified as part number 149400. It prevents boiler damage by shutting off the heating mechanism when the water level is too low.

• Dual precision switches for dependable operation.
• Lever-operated, full-port ball valve for easy blow-down.
• Quick hook-up fittings allow for simple installation.

Product Highlights

This low water cut off is suitable for any steaming capacity. It includes a large float chamber and is operable on 120/240 VAC. The maximum steam pressure rating is 20 psi.

Product Information

Standard Information

• Manufacturer: Xylem
• Brand: McDonnell & Miller

Technical Specifications

• Amperage Rating: 7.4 A at 120 V, 3.7 A at 240 V (Full Load)
• Connection Type: NPT
• Dimensions: 9-23/32 inches Long
• Item Name: Low Water Cut-Off
• Model: 67
• Pressure Rating: 20 psi
• Size Options: 3/8, 3/4, and 1/4 inches
• Type: Mechanical
• VA Rating: 125 VA Pilot-Duty
• Voltage Rating: 120/240 VAC
