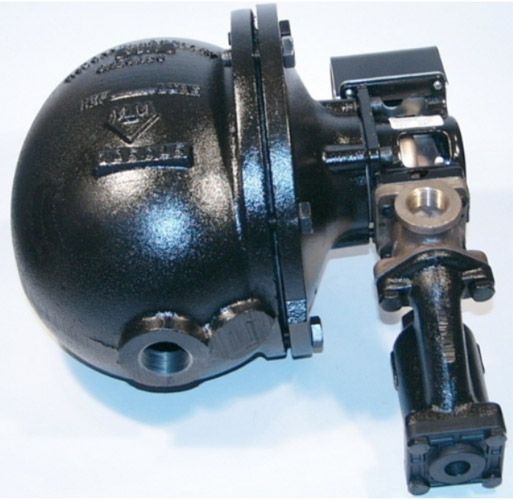

McDonnell & Miller 137200 Model 53-2M - Water Feeder Mechanical Float Switch Manual Reset Low Water Cut-Off

Product Description

Ensure optimal performance and safety in low pressure steam or hot water boilers with the McDonnell & Miller model 53-2M water feeder. This compact yet robust unit excels in maintaining a safe water level within larger boiler systems, especially those exceeding 5,000 square feet.

• Combines float-operated make-up water feeder functionality with low water cut-off.
• Equipped with a manual reset and a No. 2 switch for enhanced safety and control.
• Features a 120/240 volt operation adaptable to varied electrical services.

Product Highlights

This versatile unit can handle water pressures up to 150 psi and steam pressures of 75 psi, making it suitable for a wide range of boiler applications. The manual control switch and reset offer straightforward usage and reliable performance under different conditions.

Product Information

Technical Specifications

• Brand: McDonnell & Miller
• MPN: 137200
• Model: 53-2-M
• Application: Hot Water Boilers, Steam Boilers
• Connection Size: 1 inch FIP
• Voltage: 120V, 240V
• Control Reset: Manual
• Control Switch: No. 2-M
• Max Water Pressure: 150 psi
• Max Water Temperature: 120°F
• Weight: 38.87 pounds
