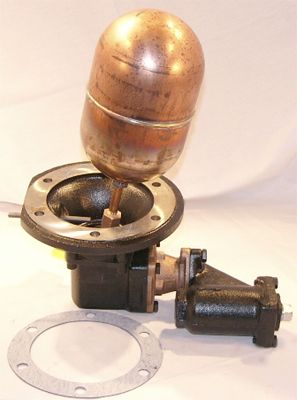

McDonnell & Miller 136700 Model 851 Water Feeder 3/4 Inch 120V

Product Description

McDonnell & Miller 136700 Model 851 is engineered for efficient water feeding into low pressure steam and hot water boiler systems. It is suitable for both commercial and industrial applications.

• Float-operated mechanism ensures automatic water make-up.
• Directly mounts on receiver tanks, omitting the need for equalizing connections.
• Proportional feed action with a replaceable cartridge valve and strainer.

Product Highlights

This water feeder operates under a maximum water supply pressure of 150 psi and a maximum water temperature of 120 degrees Fahrenheit. The robust flange design features six bolt holes ensuring secure and stable installation.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Model: 851
• MPN: 136700
• Connection Size: 3/4 Inch
• Maximum Operating Pressure: 35 psi
• Control Type: Automatic Reset

Technical Specifications

• Voltage: 120V, 240V
• Connection Type: NPT
• Max Water Pressure: 150 psi
• Max Water Temperature: 120 degrees Fahrenheit
