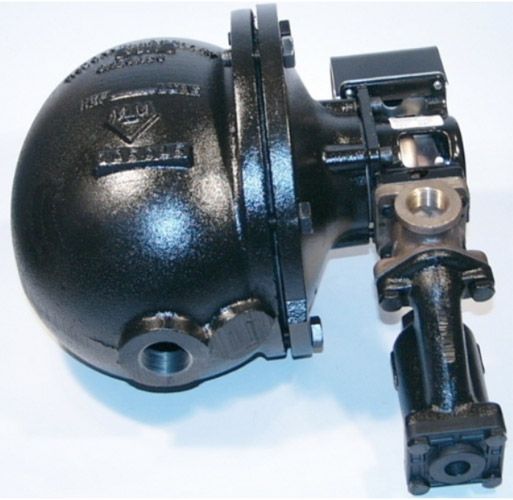

MCDONNELL & MILLER 136000 51-S-2-M Water Feeder Mechanical Low Pressure Steam and Hot Water (1 inch)

Product Description

The McDonnell & Miller model 136000, a reliable mechanical water feeder and low water cut-off device, is specifically engineered for both low pressure steam and hot water boilers. This integral unit ensures effective management of boilers with a substantial floor space of up to 35,000 square feet.

• Combines float-operated make-up water feeding with low water cut-off functionality.
• Manual reset and a #2 switch control are integrated for secure operation.
• Capable of handling maximum water pressure and temperatures up to 100 psi and 120°F respectively.

Product Highlights

Designed for robustness and reliability, the McDonnell & Miller 51-S-2-M enhances boiler operation safety and efficiency. It features a manual reset and is equipped to maintain a water feed even under varying electrical conditions. The unit ensures a consistent maintenance of water levels, vital for optimal boiler performance.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 136000
• Model: 51-S-2-M
• Application: Suitable for Steam Boilers, Hot Water Boilers

Technical Specifications

• Connection Size: 1 inch
• Connection Type: NPT
• Voltage: 120V, 240V
• Control Reset: Manual
• Control Switch: No. 2-M
• Maximum Water Pressure: 100 psi
• Maximum Water Temperature: 120°F
