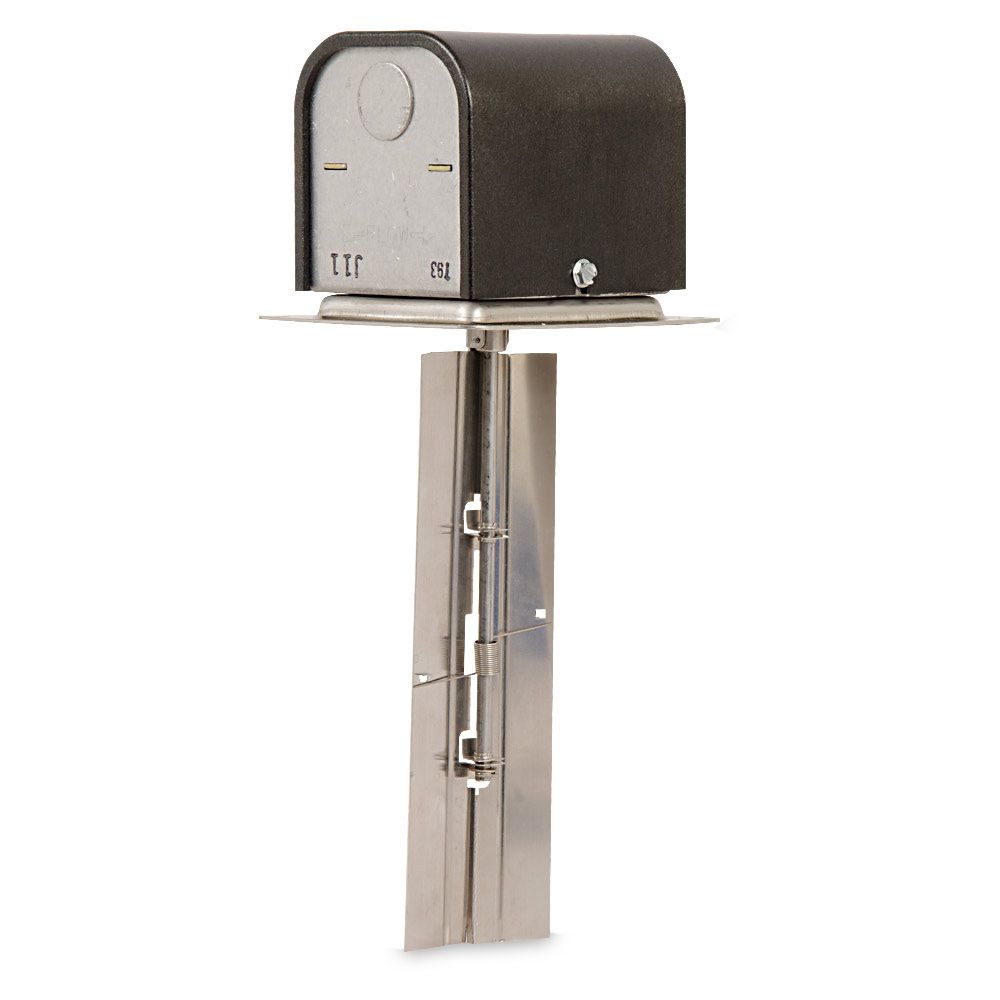

MCDONNELL MILLER 123000 AF1-S Air Flow Switch Stainless Steel Paddle 120V/240V

Product Description

This McDonnell Miller 123000 AF1-S Air Flow Switch is designed for both medium and high velocity air flow applications in commercial settings. It features a stainless steel paddle that can be adjusted to fit duct sizes from 6 inches to 8 inches. Operating at both 120V and 240V, this versatile switch ensures reliable performance in a variety of installations.

• Adjustable stainless steel paddle for versatile fit
• Durable construction suitable for commercial use
• Compatible with 120V and 240V systems

Product Highlights

The AF1-S model provides a snap action switch for easy and quick responses, and includes an adjustable sensitivity screw for precise flow adjustments. Its maximum operating temperature is 300 degrees Fahrenheit, handling up to 2500 feet per minute flow velocity.

Technical Specifications

• Brand: McDonnell & Miller
• Model: AF1-S
• MPN: 123000
• Voltage: 120V, 240V
• Enclosure Type: NEMA 1
• Control Mounting: Horizontal, Vertical
• Maximum Air Flow: 2500 fpm
• Maximum Duct Temperature: 300°F
• Paddle Length: 7-1/4 inches
