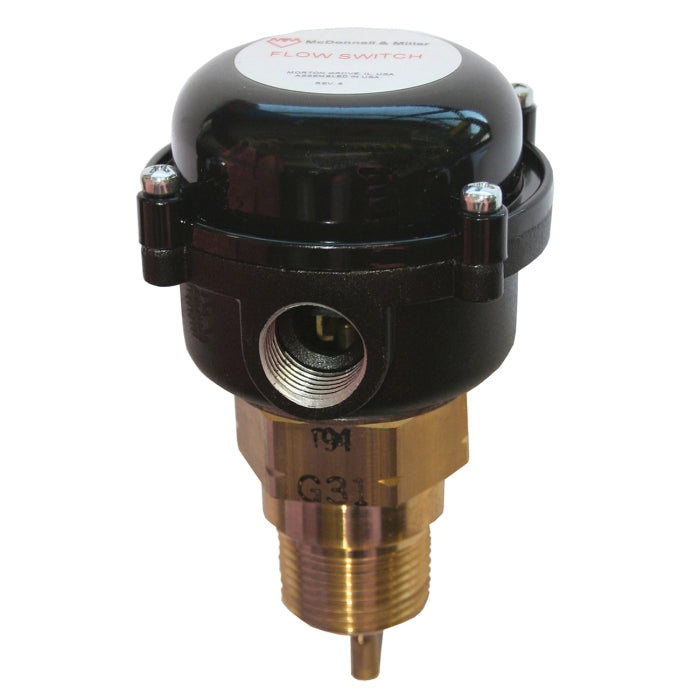

McDonnell & Miller 120601 FS8-W Liquid Flow Switch 1 NPT NEMA 4X

Product Description

The McDonnell & Miller 120601 is a general-purpose liquid flow switch designed for use in environments that require reliable flow monitoring. This switch operates using sealed Monel bellows and is rated for NEMA 4X, ensuring durability against environmental exposure.

• Includes four stainless steel paddles in sizes one, two, three, and six inches
• Adjustable sensitivity screw allows for easy flow adjustments
• Operational temperature range from thirty-two to two hundred twenty-five degrees Fahrenheit

Product Highlights

This flow switch is ideal for applications requiring a robust solution to monitor liquid flow while maintaining environmental integrity.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 120601

Technical Specifications

• Model: FS8-W
• Connection Size: 1-inch NPT
• Voltage Rating: 120/240 VAC
• Amperage Rating: 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load
• Pressure Rating: 160 psi
• Frequency Rating: 50/60 Hz
• Max Temperature: 225 degrees Fahrenheit
• Min Temperature: 32 degrees Fahrenheit
• Contact Configuration: SPDT
• Enclosure Rating: NEMA 4X
• Application: General purpose
