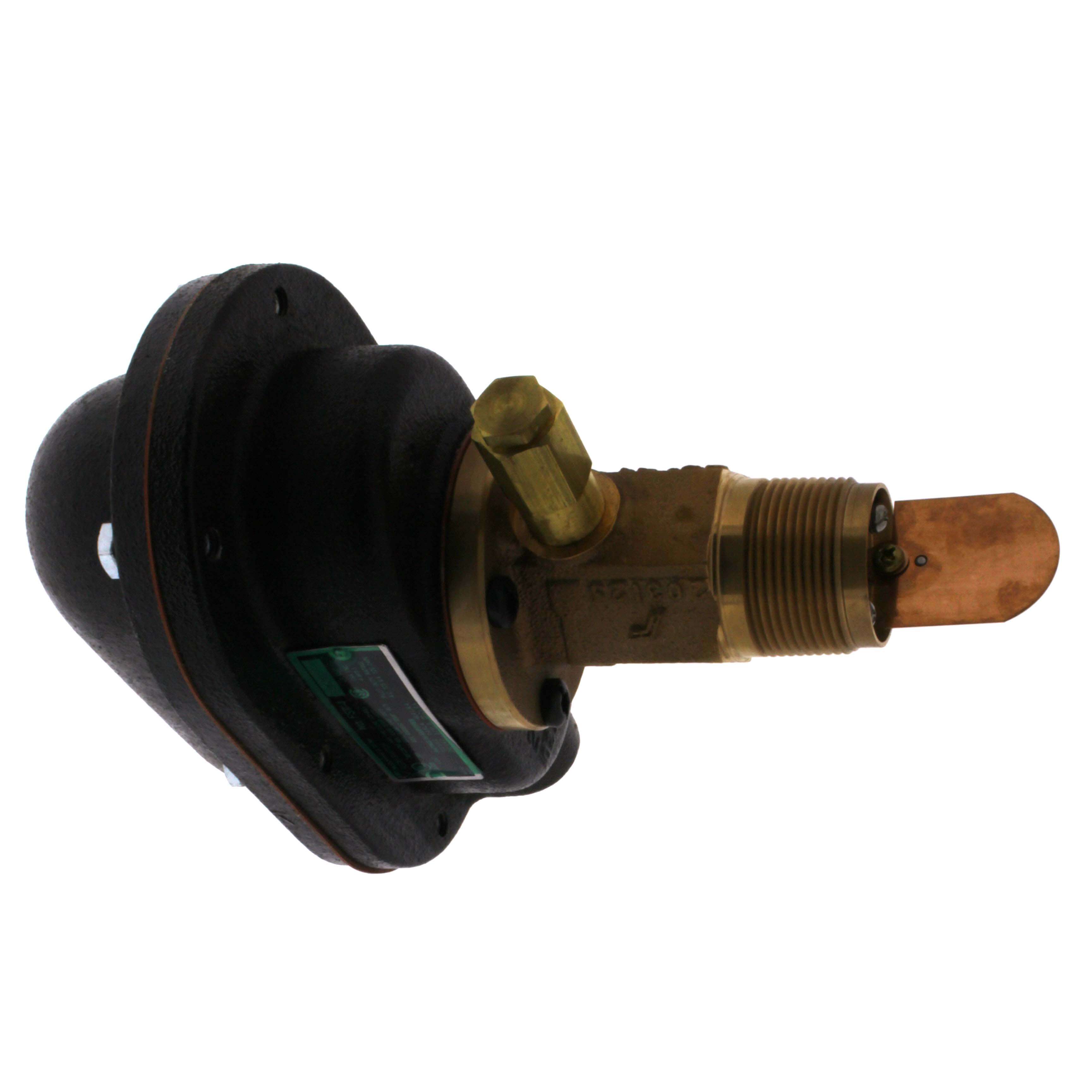

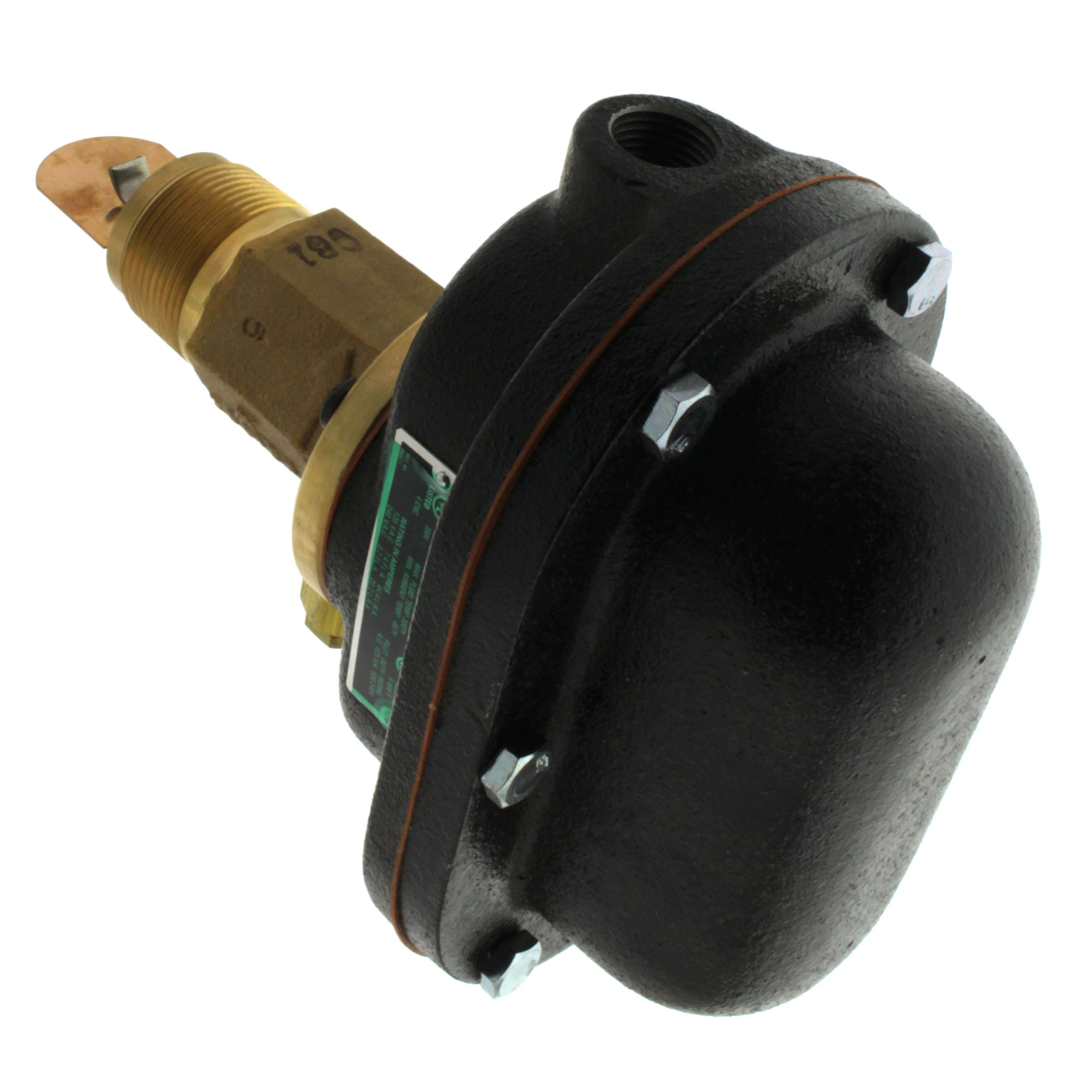

McDonnell Miller 120201 Model FS7-4W - Snap Liquid Flow Switch

Product Description

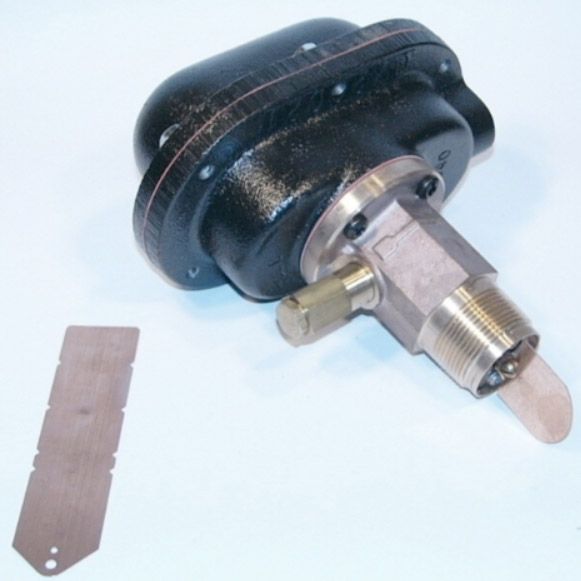

McDonnell & Miller model number 120201 is a 120 volt, NEMA 4X snap liquid flow switch designed for applications requiring water and dust-tight operations. This switch comes with a one and one-quarter inch MIP in-line connection, which allows for easy installation into a tee fitting. It also includes a paddle suitable for two to six-inch pipes, making it versatile for various flow applications.

• Water and dust-tight design with NEMA 4X enclosure
• Adjustable sensitivity for precise flow control
• Maximum temperature of three hundred degrees Fahrenheit and pressure resistance of three hundred psi

Product Highlights

This model features simple flow adjustment, ensuring accurate operation in different environments. Its robust construction makes it suitable for industrial settings.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 120201

Technical Specifications

• Model: FS7-4W
• Application: Liquid Flow
• Enclosure: NEMA 7, NEMA 9
• Voltage: 120V, 240V
• Connection Size: 1-1/4 inches
• Control Connection: NPT
• Max Pressure: 300 psi
• Max Temp: 300 degrees Fahrenheit
• Max Velocity: 10 feet/second
• Min Temp: -65 degrees Fahrenheit
• UPC: 751875000885
• Weight: 12.30 pounds
