Product Description

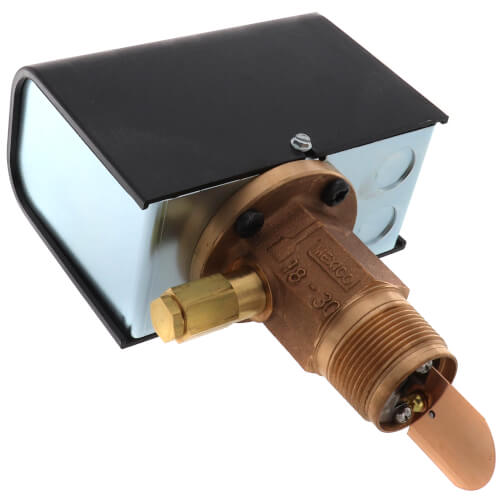

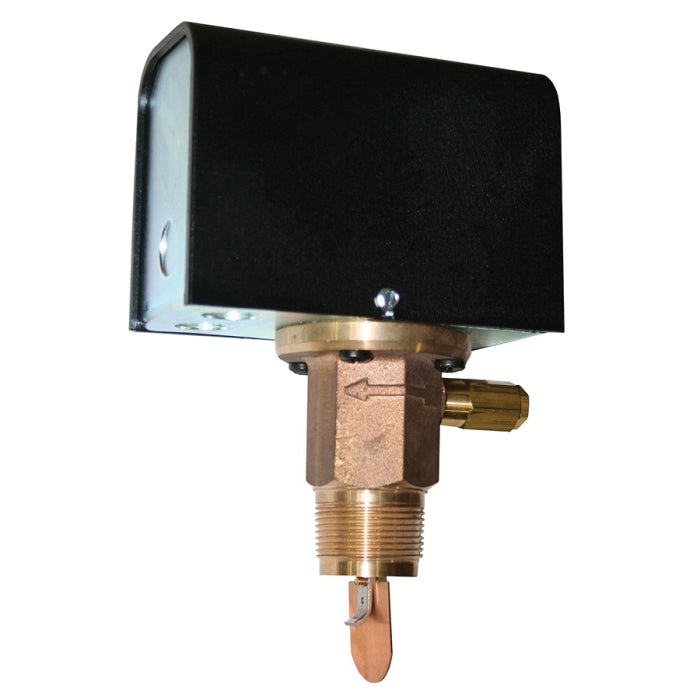

The McDonnell & Miller FS7-4 Liquid Flow Switch, MPN 119700, is designed for use in large pipe applications. This switch operates effectively in heating and hydronic systems, air conditioning, and refrigeration applications. It is available in a 1-1/4 inch NPT size and operates on voltages of 120 or 240 VAC, accommodating various installation environments.
- Brass with sealed tube construction
- Magnetic switching mechanism

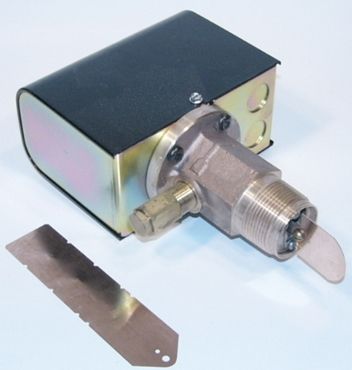

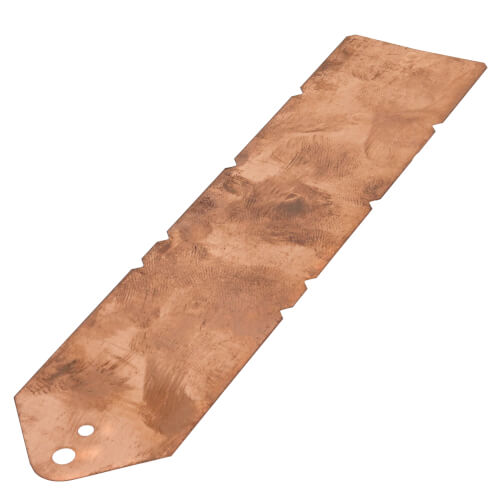

- Paddle can be trimmed for specific needs
Product Highlights
This flow switch features a sensitivity adjusting screw for easy flow adjustments, ensuring precision in your applications. Its robust design supports pressures up to 300 psi and operates within a temperature range of thirty-two to three hundred degrees Fahrenheit.
Product Information
Standard Information
-
Brand: McDonnell & Miller
-
Model: FS7-4
Technical Specifications
-
MPN: 119700
-
Connection Size: 1-1/4 inches NPT
-
Operating Pressure: 300 psi
-
Voltage Rating: 120/240 VAC
-
Action: Snap
-
Temperature Range: 32 - 300 degrees F
-
Weight: 5.02 pounds
-
Dimensions: 5-13/16 in W x 9-1/2 in H x 2-7/8 in D
