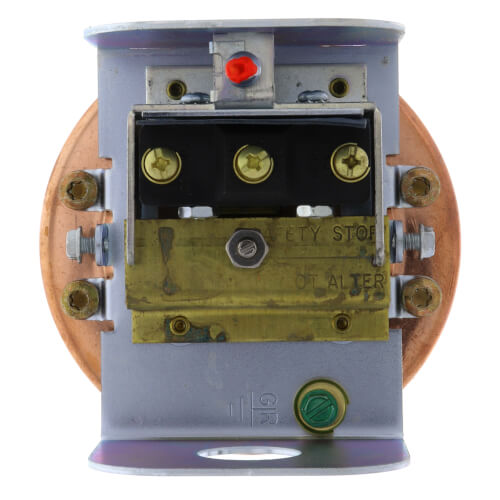

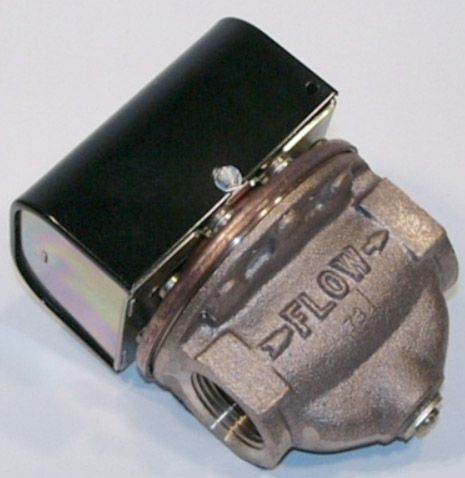

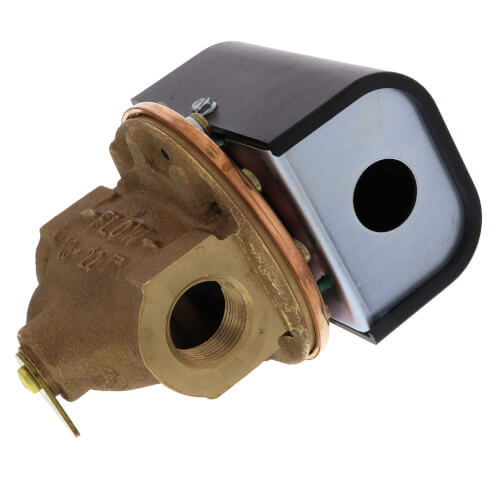

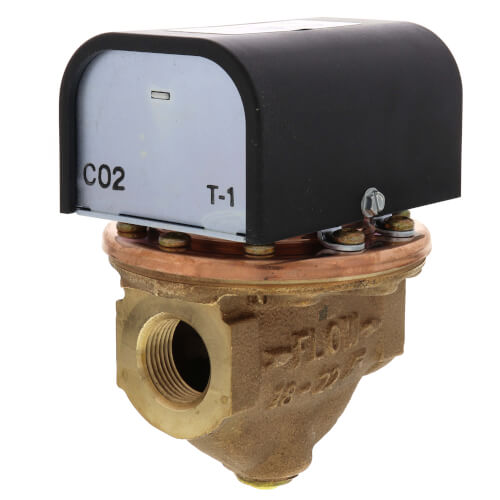

McDonnell & Miller 115400 FS6-3/4 Flow Switch High Sensitivity

Product Description

The McDonnell & Miller model FS6-3/4 is a 120 volt, single pole double throw liquid flow switch. It is designed for heavy-duty applications that demand high sensitivity. This switch is suitable for high flow rates found in water treatment systems, compressors, and booster pumps that require prompt switching.

• Features a 3/4 FIP in-line connection.
• Includes a sensitivity adjustment screw for precise flow control.
• Operates at a maximum temperature of two hundred twenty-five degrees Fahrenheit and a maximum pressure of one hundred psi.

Product Highlights

This flow switch is ideal for applications needing immediate switching actions under high flow conditions. Its design ensures reliability in liquid flow management.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Model: FS6-3/4

Technical Specifications

• MPN: 115400
• Application: Liquid Flow
• Enclosure: NEMA 1
• Voltage: 120V, 240V
• Connection Size: 3/4
• Control Connection: NPT
• Max Pressure: 100 psi
• Max Temperature: 225°F
• Min Temperature: 32°F
• Max Velocity: 10 ft/sec
• Weight: 4.5 lbs
