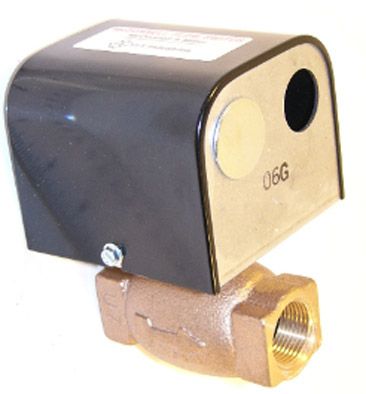

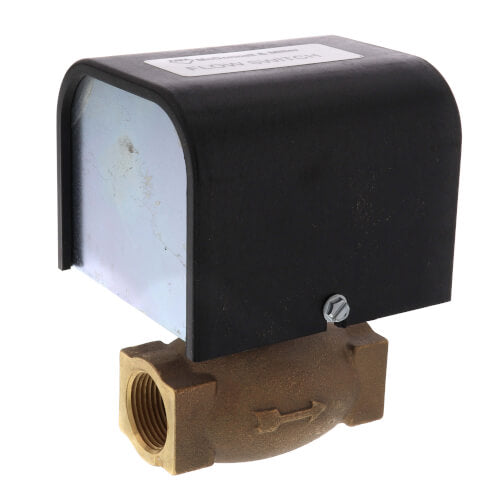

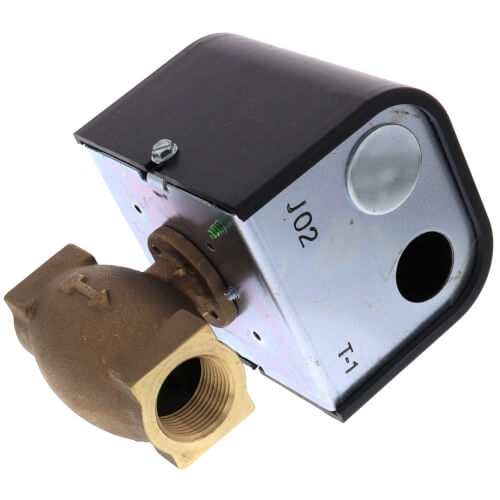

McDonnell & Miller 114760 FS5-3/4 Flow Switch 120/240 VAC

Product Description

The McDonnell & Miller 114760 is a liquid flow switch designed for general purpose applications. This model operates on 120/240 VAC and uses a 3/4 inch NPT connection. It features a sensitivity adjustment screw, which allows for easy flow rate adjustments.

• In-line configuration removes the need for a pipe tee.
• 125 VA pilot-duty capacity for reliable performance.
• UL listed and CSA certified for safety standards.

Product Highlights

This flow switch is ideal for applications that require low flow rate sensitivity. Its robust design ensures longevity and reliability in hydronic systems.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Manufacturer: Xylem

Technical Specifications

• Connection Size: 3/4 inch NPT
• Voltage Rating: 120/240 VAC
• Pressure Rating: 150 psi
• Temperature Rating: 32 - 250 degrees Fahrenheit
• Amperage Rating: 7.4 A at 120 VAC, 3.7 A at 240 VAC full load

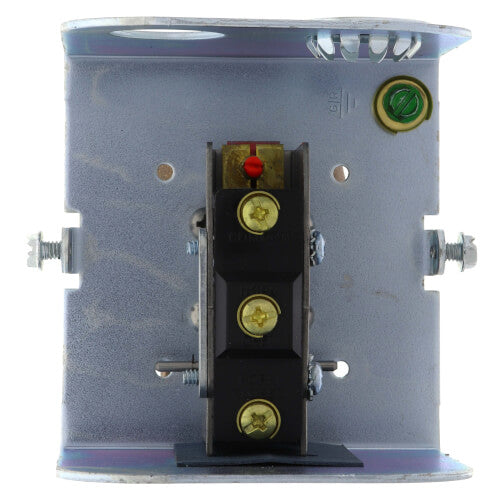

• Contact Configuration: SPDT
• Dimension: 3-3/16 inches wide x 5-1/16 inches high x 1-11/16 inches deep
• Enclosure: NEMA 1
• Frequency Rating: 50/60 Hz
• Material: Brass
• Model: FS5-3/4
