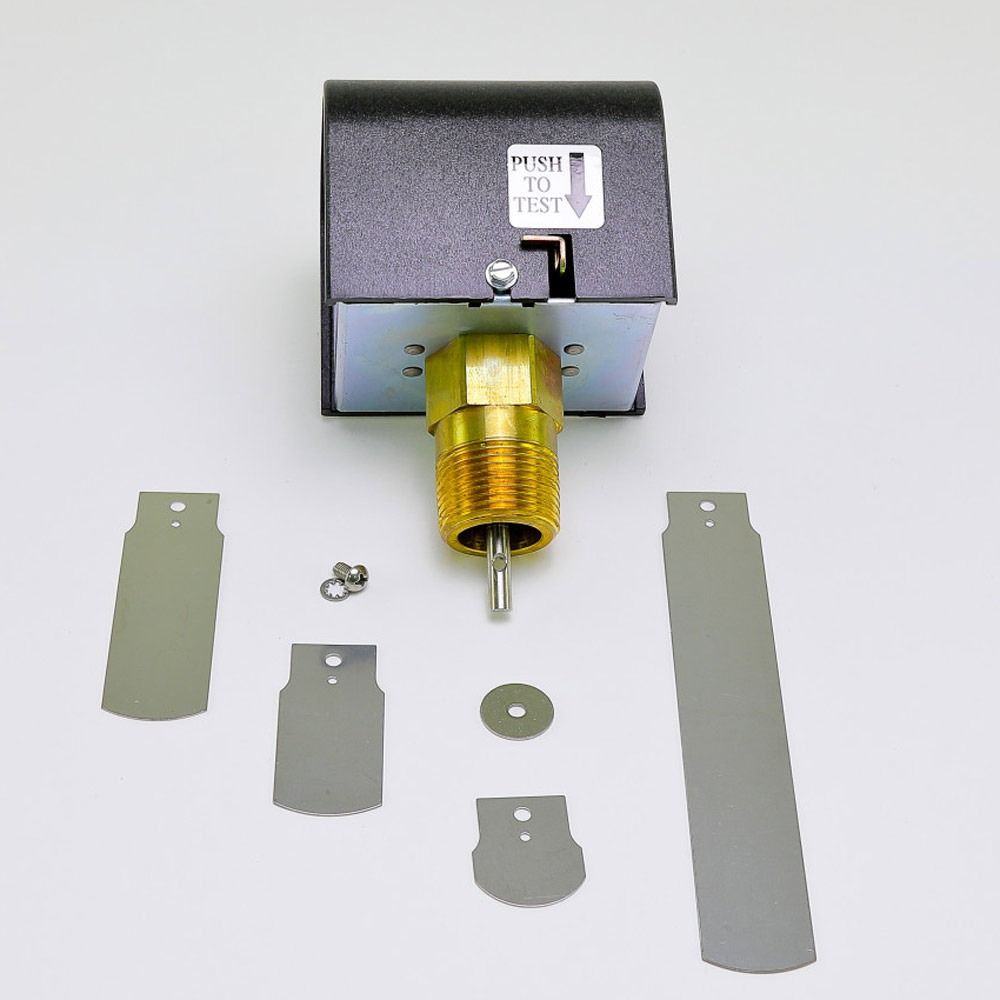

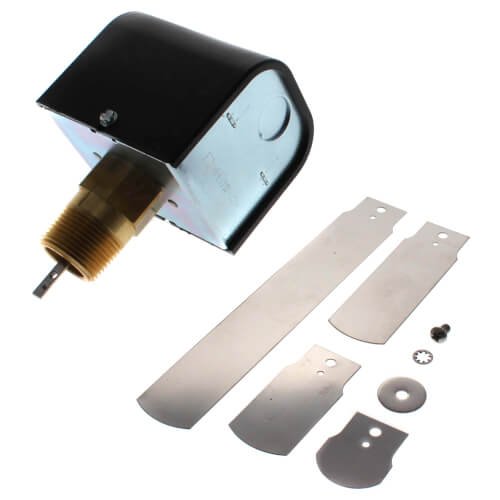

Mcdonnell & Miller 114639 FS4-3RP-T Liquid Flow Switch w/Test Feature

Product Description

Mcdonnell & Miller 114639 is a liquid flow switch designed for general purpose use in various applications. This switch can start or stop electrical equipment, including alarms, motors, and automatic burners. It operates on one hundred twenty volts and features a single pole double throw design.

• Reinforced paddles included: one, two, three, and six.
• Sensitivity adjustment screw for precise flow control.
• Designed for maximum temperature of three hundred degrees Fahrenheit and pressure up to one hundred fifty psi.

Product Highlights

This flow switch is suitable for installations in various settings. It includes a male I.P connection to be installed into a tee.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 114639

Technical Specifications

• Model: FS4-3RP-T
• Application: Liquid Flow
• Voltage: 120V, 240V
• Connection Size: 1 inch
• Control Connection: NPT
• Max Pressure: 160 psi
• Max Temperature: 300 degrees Fahrenheit
• Min Temperature: 32 degrees Fahrenheit
• Max Velocity: 10 ft/sec
• Weight: 2.01 lbs
• Replaces: 114650, FS4-3RP
