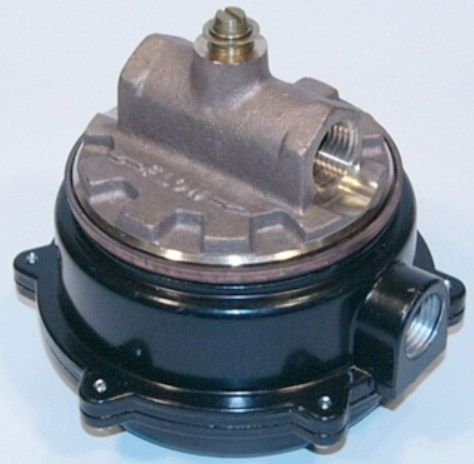

McDonnell & Miller 113601 FS1-W Snap Liquid Flow Switch

Product Description

McDonnell & Miller model number 113601 is a FS1-W snap liquid flow switch designed to operate on 120 volts. This device is suitable for high sensitivity applications involving low to moderate flow rates in systems such as air conditioning, heating, and hydronic uses. It incorporates a sensitivity adjustment screw for precise flow adjustments. The flow switch includes a 1/2 FIP in-line configuration and adheres to NEMA 4X standards for durability.

• 120 volt, single pole, double throw configuration
• Maximum temperature of two hundred twenty-five degrees Fahrenheit
• Maximum pressure of one hundred psi

Product Highlights

This model is ideal for maintaining control in various HVAC applications, ensuring accurate monitoring and functionality in liquid flow systems.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 113601

Technical Specifications

• Model: FS1-W
• Application: Liquid Flow
• Enclosure: NEMA 4X
• Voltage: 120V, 240V
• Connection Size: 1/2 inches
• Control Connection: NPT
• Max Pressure: 100 psi
• Max Temperature: 225 degrees Fahrenheit
• Max Velocity: 10 ft/sec
• Min Temperature: 32 degrees Fahrenheit
• UPC: 751875000243
• Weight: 3.50 lbs
