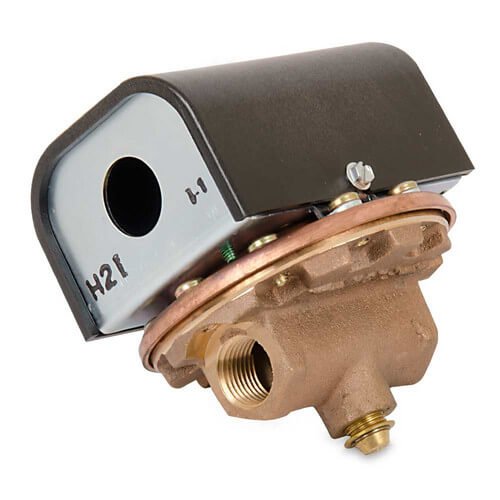

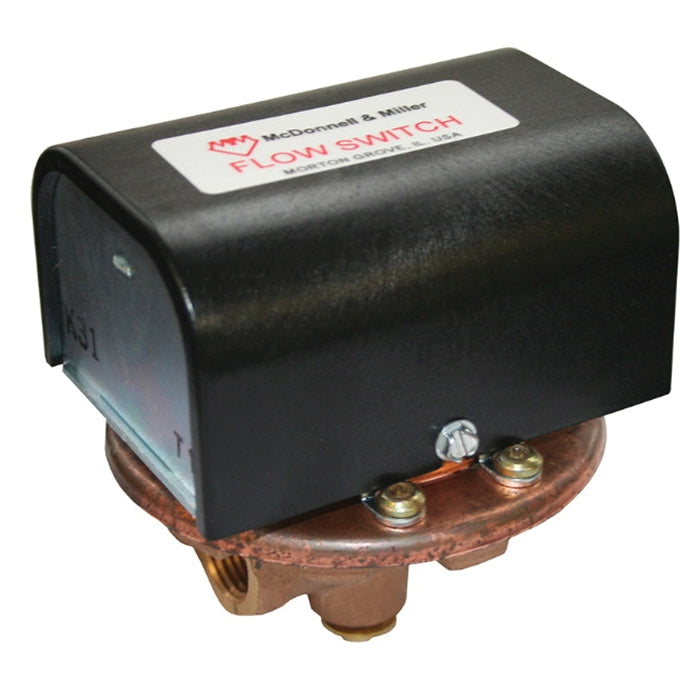

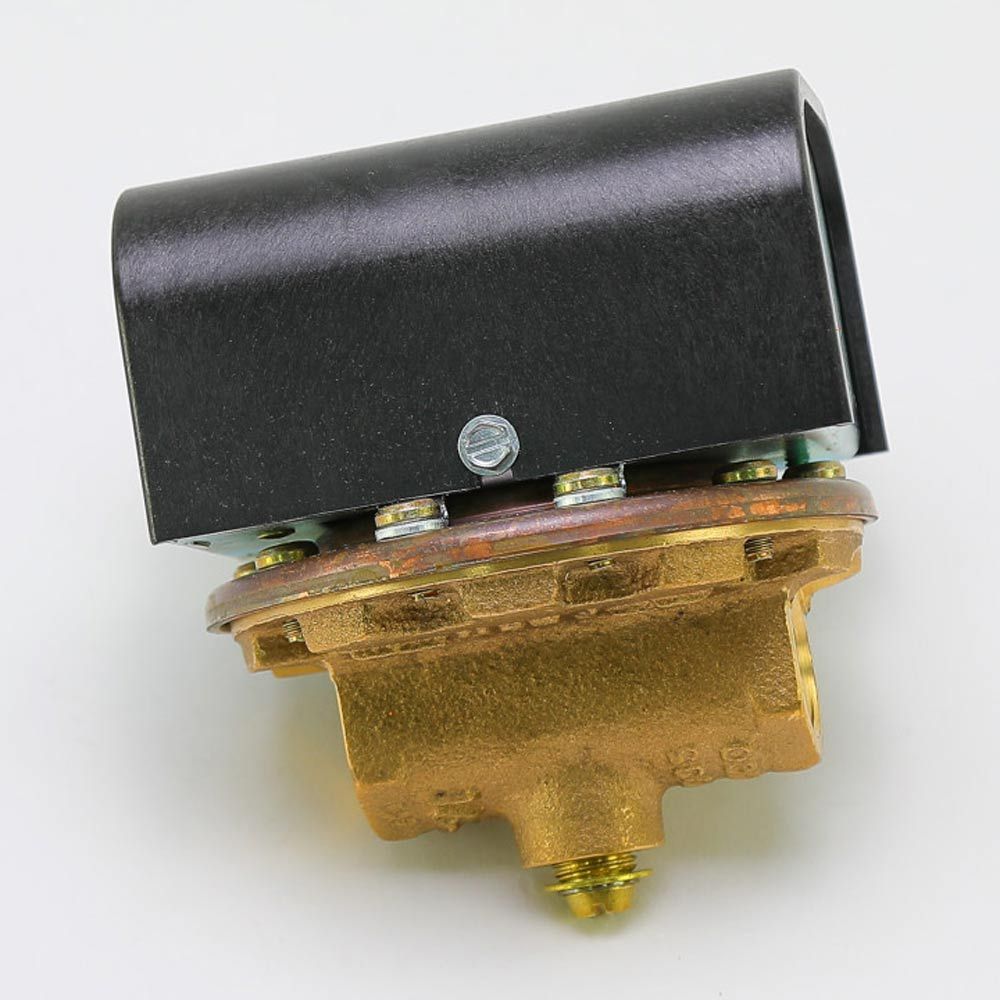

McDonnell & Miller 113200 High Sensitivity Liquid Flow Switch 1/2 in NPT Replacement MPN

Product Description

The McDonnell & Miller 113200 is a high sensitivity liquid flow switch designed for use in applications requiring precise flow monitoring. This model operates efficiently with liquids such as water and fuel oil in heating, air conditioning, and hydronic systems. Its in-line configuration removes the need for a pipe tee, simplifying installation.

• Max operating pressure of 100 psi
• Temperature range from thirty-two degrees Fahrenheit to two hundred twenty-five degrees Fahrenheit
• Equipped with a sensitivity adjusting screw for straightforward flow adjustments

Product Highlights

This switch is UL listed and CSA certified, ensuring safety and reliability in demanding conditions.

Product Information

Standard Information

• Brand: McDonnell & Miller
• MPN: 113200

Technical Specifications

• Action: Snap
• Amperage Rating: 7.4 and 3.7 A
• Connection Size: 1/2 in NPT
• Contact Configuration: SPDT
• Dimension: Four and eleven-sixteenths inches high by five and one-half inches diameter
• Enclosure: NEMA 1
• Frequency Rating: 50/60 Hz
• Min Temperature: Thirty-two degrees Fahrenheit
• Max Temperature: Two hundred twenty-five degrees Fahrenheit
• Max Pressure: 100 psi
• Model: FS1
• Type: High Sensitivity
• Voltage Rating: 120/240 VAC
