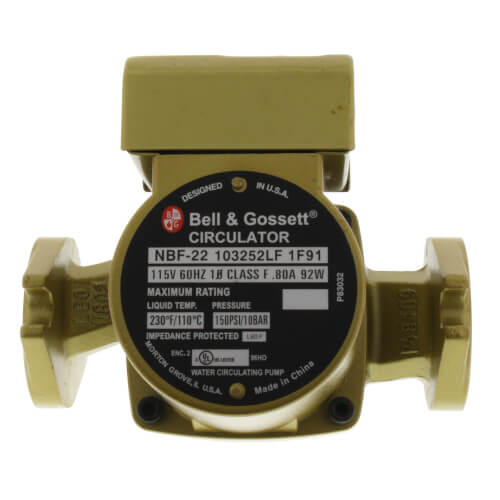

Mcdonnell & Miller 103252LF Bell & Gossett NBF-22 Bronze Body Pump 1/25 hp

Product Description

The McDonnell & Miller 103252LF Bell & Gossett NBF-22 is a bronze body pump with 1/25 HP, designed for potable, domestic water applications. These dependable, in-line wet rotor circulator pumps are specifically intended to pump potable water from hot water tanks to areas such as bathrooms and kitchens. Features a maintenance-free system and a self-cleaning particle shield.

• For potable, domestic water
• Series NBF bronze body pumps
• Maintenance-free system

Product Highlights

The NBF-22 bronze body pump is ideal for domestic water applications. Its maintenance-free design and self-cleaning particle shield ensure reliable performance.

Product Information

Standard Information

• Brand: McDonnell & Miller
• Manufacturer Part Number: 103252LF

Technical Specifications

• Manufacturer (Brand): Bell & Gossett
• Bell & Gossett Series: Series NBF
• Model: NBF-22
• MPN (Manufacturer Part Number): 103252LF
• Pump Type: Booster
• Mounting Type: In-Line
• Construction: Bronze
• Connection Size: 1”, 1-1/2”, 1-1/4”, 3/4”
• Connection Type: Flanged
• Flanges Included: No
• Motor HP: 1/25 HP
• Motor RPM: 2940 RPM
• Voltage: 115v
• Motor Phase: Single
• Hertz: 60Hz
• Max Temp: 230°F
• Application: Potable Water
