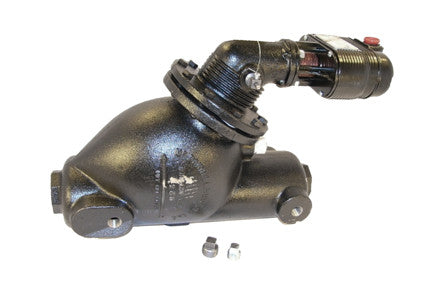

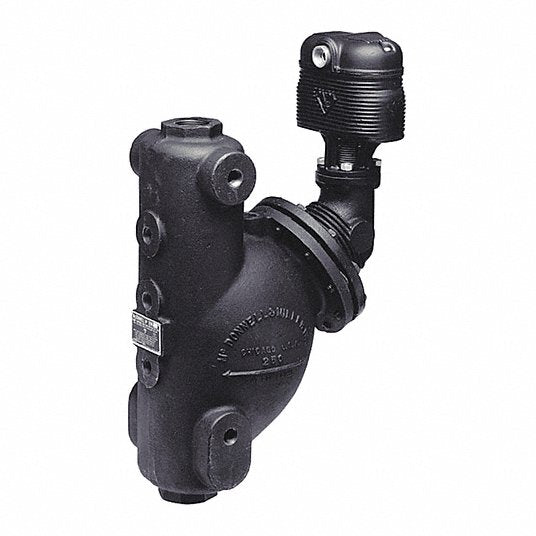

MCDONNELL 194-7B Low Water Cut-Off & Pump Controller 250 PSI

Product Description

The MCDONNELL 194-7B is a reliable solution for maintaining water levels in steam boilers. This combination low water cut-off and pump controller includes a potentiometer switch and is designed to handle a maximum pressure of two hundred fifty PSI.

• Combination low water cut-off and pump controller
• Potentiometer switch for precise control
• Suitable for steam boilers with high-pressure requirements

Product Highlights

This controller ensures consistent water levels and features a design that includes integral tappings for gauge glass and tri-cock installations. Utilizing magnetic repulsion technology, it eliminates the need for bellows.

Product Information

Standard Information

• Brand: MCDONNELL & MILLER
• Product Type: Low Water Cut-Off & Pump Controller

Technical Specifications

• Connection Type: Screwed
• Connection Size: 1-1/4 inches
• No. 7B Switch Included: Yes
• Maximum Pressure: 250 PSI
• Standards: CSA, FM, UL Listed
• Country of Origin: USA (subject to change)
