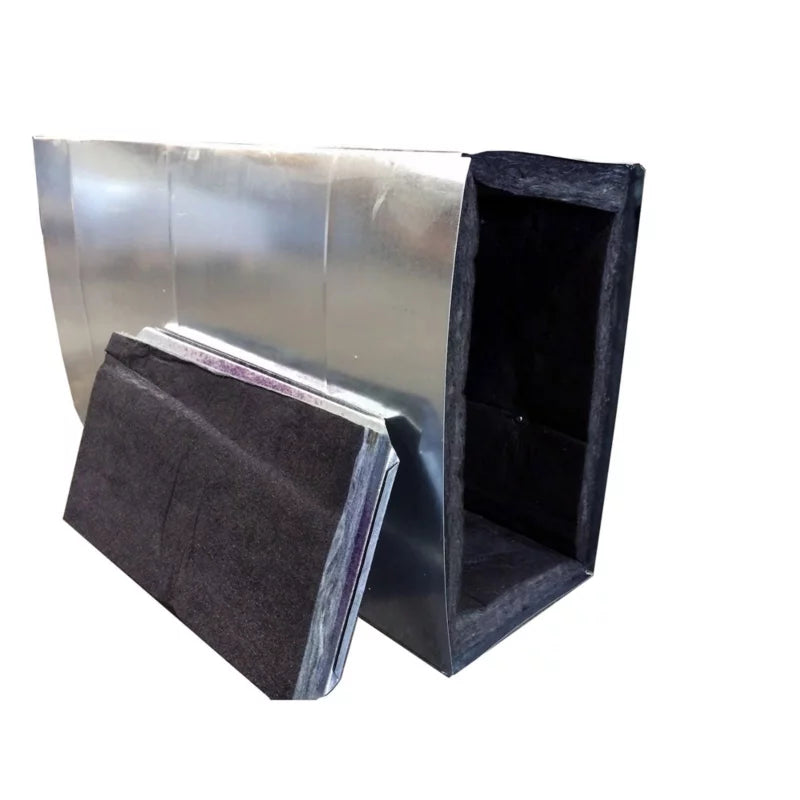

Mcdaniel Metals SP10-36T Supply Plenum 19.5x11.25 in

Product Description

The MCDANIEL METALS SP10-36T is a metal supply plenum designed for forced-air HVAC distribution systems. It serves as the transition chamber that connects the air handler or furnace discharge to the ductwork, directing conditioned air into the supply trunk or branch runs. Measuring 19.5 inches by 11.25 inches in cross-section with a 36-inch length, this plenum is sized for residential and light-commercial applications. At 19 pounds, it is constructed from metal with a silver finish and is manufactured in the USA. HVAC technicians install this component during new system construction or duct replacement projects.

This supply plenum is suited for residential and light-commercial forced-air heating and cooling systems where a reliable, non-insulated metal plenum is required at the air handler or furnace supply outlet. It is appropriate for applications where external duct wrap or in-line insulation will be applied separately, or where the plenum is located in conditioned space and insulation is not required by code. Installers working on new construction, system replacements, or duct system upgrades will find this a direct fit for standard supply plenum configurations.

Key Features

• Metal construction provides structural rigidity and long service life in air distribution applications
• 19.5 inch by 11.25 inch cross-section suits common residential and light-commercial air handler outlets
• 36-inch length accommodates standard plenum runs between equipment and supply trunk duct
• Non-insulated design allows field application of wrap insulation to meet local energy codes
• Manufactured in the USA
• California Proposition 65 compliant product disclosure applies

Compatibility

Designed as an OEM-style metal supply plenum for residential and light-commercial forced-air HVAC systems requiring a 19.5 inch by 11.25 inch supply plenum connection.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and SMACNA duct construction standards. Disconnect and lock out power to the air handler or furnace before beginning any plenum work. Secure all plenum connections with appropriate fasteners and seal joints with listed duct sealant or metal tape to meet air leakage requirements. Where local energy codes require insulation on supply plenums in unconditioned spaces, apply duct wrap rated to the required R-value before system startup.

Technical Specifications

• Cross-Section: 19.5 inches x 11.25 inches
• Length: 36 inches
• Packaged Width: 23.125 inches
• Packaged Height: 4.5 inches
• Weight: 19 pounds
• Material: Metal
• Color: Silver
• Insulated: No
• Country of Origin: USA

Standard Information

• Brand: MCDANIEL METALS
• Manufacturer Part Number: SP10-36T
