Mcdaniel Metals DP-36X36-22GW Welded Drain Pan 36x36 22GA

Product Description

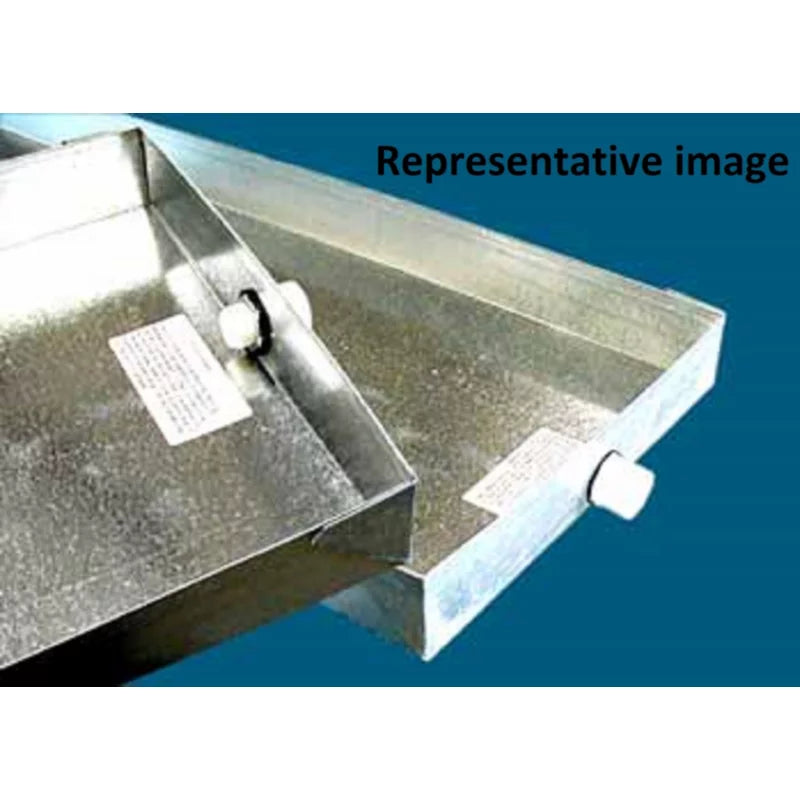

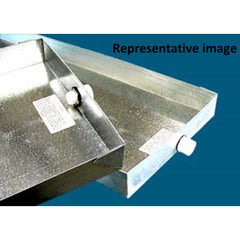

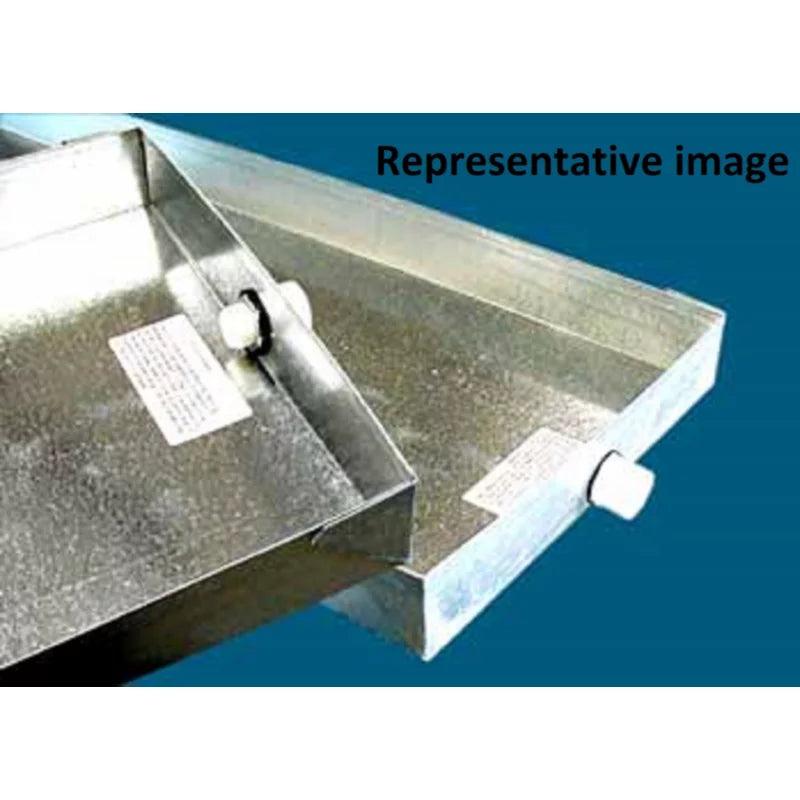

The MCDANIEL METALS DP-36X36-22GW is a welded galvanized steel drain pan built for use beneath air handlers and furnaces with evaporator coils. Constructed from 22-gauge galvanized steel, it measures 36 inches long by 36 inches wide by 2.5 inches deep and weighs 9.2 pounds. The welded construction provides a leak-resistant basin that collects condensate and protects the surrounding structure from water damage. A single 3/4-inch drain connection allows condensate to route directly to a drain line. HVAC technicians and installers typically specify this pan during coil installations or equipment replacements where a secondary or primary condensate containment solution is required.

This drain pan is intended for residential and light commercial HVAC applications. It fits beneath air handlers or furnaces equipped with an evaporator coil where condensate management is required. The 36 by 36 inch footprint accommodates larger air handler cabinets and horizontal coil configurations. The galvanized steel finish provides corrosion resistance suited to the wet environment of an active condensate collection point. This pan is manufactured in the USA and sold individually.

Key Features

• Welded construction creates a continuous, leak-resistant basin with no seam gaps
• 22-gauge galvanized steel provides corrosion resistance in condensate-exposed environments
• 36 x 36 inch footprint accommodates large air handler and coil assemblies
• 2.5 inch depth provides adequate condensate capacity before drain activation
• Single 3/4-inch drain connection for standard condensate line hookup
• Domestic manufacture (USA)

Compatibility

Designed for use with air handlers or furnaces equipped with an evaporator coil requiring primary or secondary condensate containment. Suitable for installations where a 36 by 36 inch pan footprint is specified.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out power to the air handler or furnace before positioning or replacing the drain pan. Ensure the 3/4-inch drain connection is properly fitted with a condensate drain line sloped toward the drain per local mechanical code requirements. Verify the pan sits level to prevent standing water from pooling away from the drain outlet.

Technical Specifications

• Length: 36 inches
• Width: 36 inches
• Height (Depth): 2.5 inches
• Weight: 9.2 pounds
• Gauge: 22 GA
• Material: Galvanized Steel
• Color: Silver
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch
• For Use With: Air Handler or Furnace with Coil
• Country of Origin: USA

Standard Information

• Brand: MCDANIEL METALS
• Manufacturer Part Number: DP-36X36-22GW
