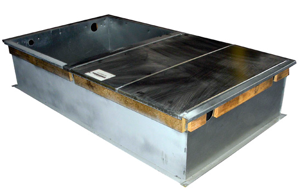

McDaniel Metals 18CURB90150 Flat Roof Curb 16 ga 18 Inch DCC/DCG/DCH Series 7.5 - 12.5 ton Package Unit

Product Description

The McDaniel Metals flat roof curb with MPN 18CURB90150 is designed for use with DCC, DCG, and DCH series units in the range of seven point five to twelve point five tons. This curb is made from sixteen gauge metal and measures fifty-three and one-fourth inches long, ninety-two and one-fourth inches wide, and eighteen inches high.

• Compatible with DCC, DCG, and DCH series packaged units
• Includes a 1x4 inch wood nailer for easy installation
• Features both supply and return openings

Product Highlights

The flat roof curb is essential for proper installation of rooftop HVAC units. It provides a weather-resistant platform for the unit, ensuring a strong seal and stability.

Product Information

Standard Information

• Type: Flat
• Manufacturer: McDaniel Metals

Technical Specifications

• Dimensions: 53-1/4 Inch L x 92-1/4 Inch W x 18 Inch H
• Material Gauge: 16 ga
• Compatible Units: DCC/DCG/DCH Series 7.5 - 12.5 ton Package Unit
• Supply Opening: 15-3/8 x 31-1/8 Inch
• Return Opening: 14-5/8 x 38-3/8 Inch
• Installation Aids: Gasket, bed rail style corners
