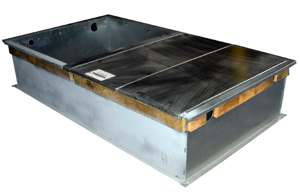

McDaniel Metals 14CURB90150 Flat Roof Curb 16 ga 14 Inch DCC/DCG/DCH Series 75-125 ton Package Unit

Product Description

The McDaniel Metals 14CURB90150 is a flat roof curb designed for use with DCC, DCG, and DCH Series seven point five to twelve point five ton package units. This curb is made from sixteen gauge steel and measures fifty-three and one-fourth inches in length, ninety-two and one-fourth inches in width, and fourteen inches in height. It features a robust construction suitable for various roofing applications.

• Constructed from sixteen gauge steel
• Dimensions are 53-1/4 inches L x 92-1/4 inches W x 14 inches H
• Compatible with DCC/DCG/DCH Series package units

Product Highlights

This curb includes a gasket, bed rail style corners, a one by four inch wood nailer attached to the top, and specified supply and return openings for efficient installation.

Product Information

Standard Information

• Type: Flat
• Manufacturer: McDaniel Metals

Technical Specifications

• Dimensions: 53-1/4 inches L x 92-1/4 inches W x 14 inches H
• Material: 16 gauge steel
• Suitable For Use With: DCC, DCG, DCH Series 7.5 - 12.5 ton Package Unit
• Supply Opening: 15-3/8 inches x 31-1/8 inches
• Return Opening: 14-5/8 inches x 38-3/8 inches
