Maze Nails SINK16050 Sinker Framing Nails 16d 50 Lb

Product Description

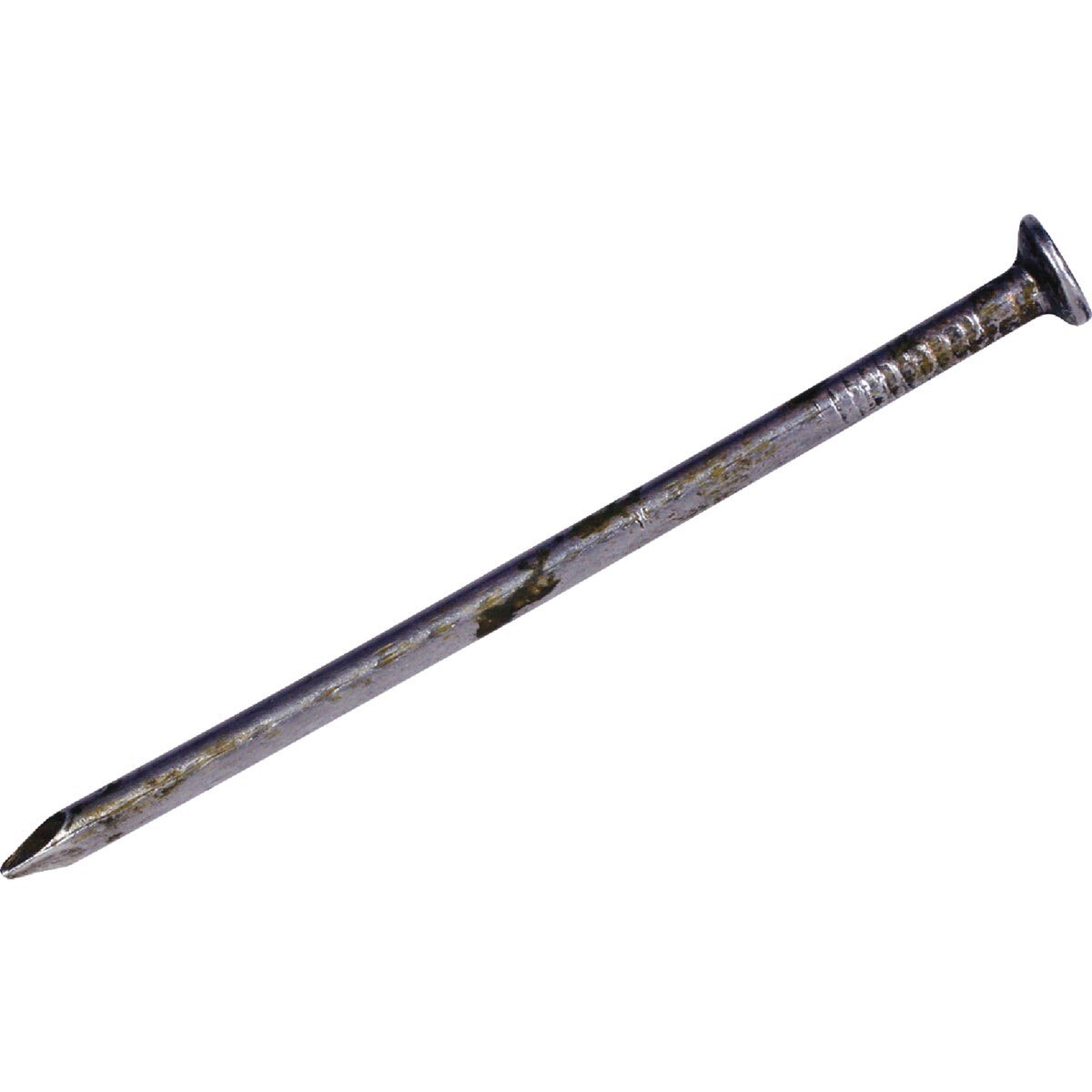

The MAZE NAILS SINK16050 is a 16d vinyl coated sinker framing nail designed for permanent structural framing applications. Each nail measures 3.25 inches in length and features a checkered countersunk head that drives flush with the work surface, reducing the need for additional finishing work. The vinyl cement coating increases holding power by creating friction and a light bond with wood fibers as the nail is driven. This box contains 3200 nails at a 50-pound bulk pack weight, making it a practical choice for high-volume framing crews on residential and light commercial job sites.

These sinker nails are used in wood-frame construction for wall framing, floor systems, roof framing, and general structural assembly. The 16d size is the standard nail specification called out in most residential framing details and building codes for stud-to-plate connections and joist hangers driven by hand or pneumatic framing nailer. The bulk 50-pound box format is suited for extended framing runs where minimizing reload time matters.

Key Features

• Checkered countersunk head drives flush with framing lumber surface
• Diamond point for clean, controlled penetration into dimensional lumber
• Vinyl cement coating increases withdrawal resistance in permanent framing
• 16d x 3.25 inches — standard size for structural wood framing per IRC and IBC nailing schedules
• 3200 nails per box supports high-volume framing work without frequent restocking

Compatibility

Designed as a standard 16d sinker framing nail for use in hand nailing and compatible pneumatic framing nailers that accept 16d bulk wire or clipped-head nails — verify magazine compatibility with your specific nailer model before use.

Installation Notes

Licensed carpenters and framing contractors drive these nails per the nailing schedules specified in the International Residential Code or the applicable local building code. When using a pneumatic framing nailer, confirm the tool is rated for 16d sinker nails and set the depth adjustment to avoid over-driving the countersunk head. Hand-nail applications should use a framing hammer of adequate weight to fully seat the nail in a controlled strike pattern. Store bulk nails in a dry location to prevent corrosion that can reduce holding strength.

Technical Specifications

• Nail Size: 16d
• Length: 3.25 inches
• Quantity: 3200 nails
• Box Weight: 51.4 pounds
• Head Style: Checkered countersunk
• Point Style: Diamond
• Coating: Vinyl cement
• UPC: 00098342044998

Standard Information

• Brand: MAZE NAILS
• Manufacturer Part Number: SINK16050
