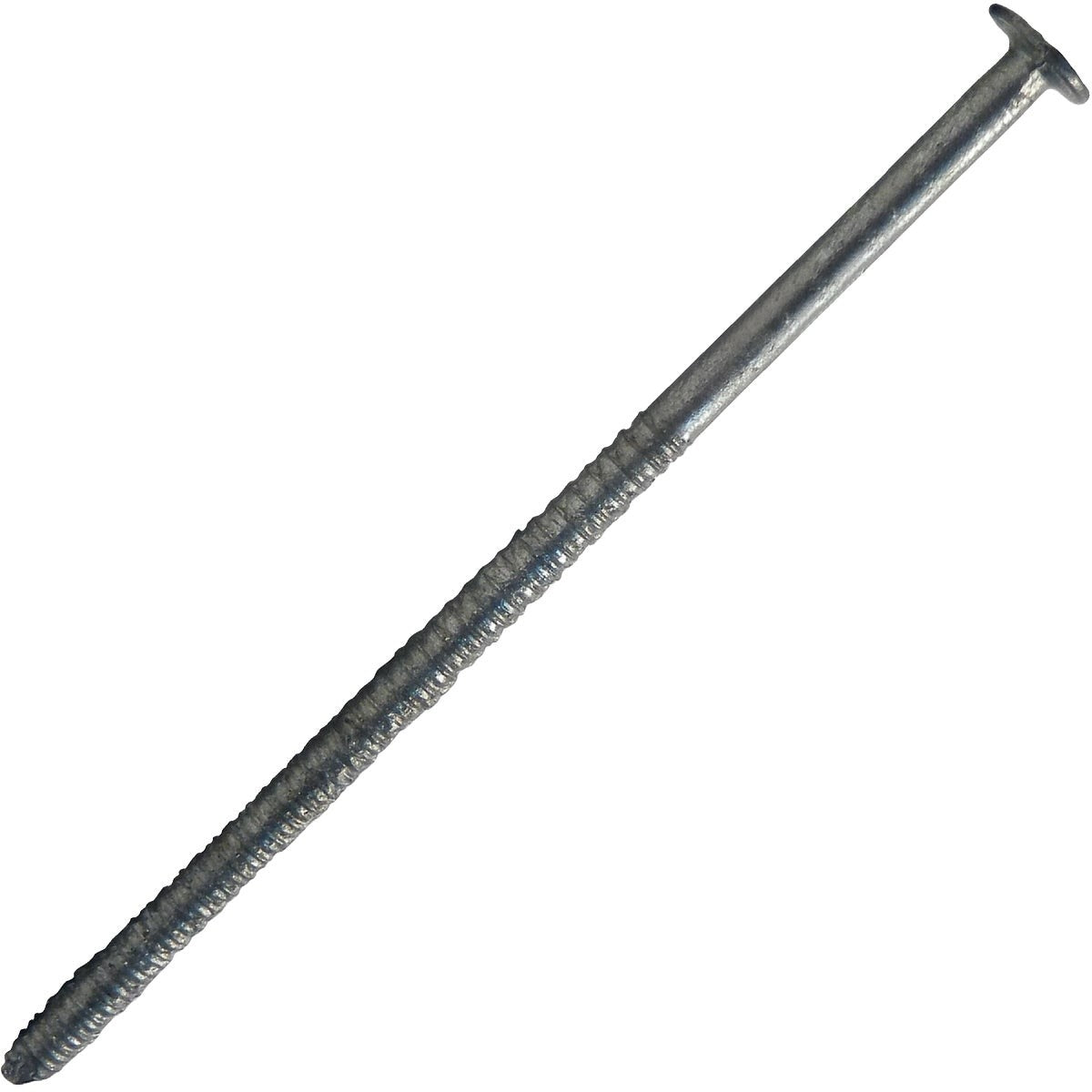

Maze Nails S227A530 Galvanized Ring Shank Siding Nails 5 Lb

Product Description

The MAZE NAILS S227A530 is a hot-dipped galvanized ring shank nail engineered for wood siding applications where split resistance and long-term holding power are critical. At 2.5 inches in length and 13 gauge in diameter, each nail features an annular ring shank that mechanically locks into the wood fiber, significantly increasing withdrawal resistance compared to smooth shank fasteners. The double-dip hot galvanizing process coats the nail in molten zinc twice, building a corrosion barrier suitable for exterior wood substrates. The checkered head pattern promotes paint adhesion, keeping finished siding surfaces clean and uniform. Each box contains 945 nails and weighs 5 pounds.

These nails are designed for installation of wood siding on residential and light commercial structures. They are particularly suited for split-prone wood species such as cedar, redwood, and pine lap siding, where a standard smooth shank nail may cause cracking or lose grip over time. Carpenters and siding installers working in coastal or high-humidity environments will benefit from the double-dip galvanized coating, which provides added protection against rust and staining on exposed wood surfaces.

Key Features

• Annular ring shank design increases withdrawal resistance in split-prone wood species
• Double-dipped in molten zinc for enhanced corrosion protection on exterior applications
• 2.5 inch length and 13 gauge diameter suited for standard wood siding thickness
• Checkered head surface promotes paint adhesion for clean finished appearance
• 945-count box at 5 pounds provides consistent job-site quantity for estimating

Compatibility

Designed as an OEM-style fastener for exterior wood siding installation, including lap siding and similar wood cladding applications on residential and light commercial framing.

Installation Notes

Installation is performed by carpenters and siding contractors using a conventional siding nailer or hammer. Follow siding manufacturer nailing patterns and local building code requirements for fastener spacing and penetration depth into structural framing. Avoid overdriving, which can fracture the wood face and compromise the galvanized coating at the nail head. When working with prefinished or stained siding, confirm that the galvanized finish is compatible with the specified coating system to prevent chemical staining.

Technical Specifications

• Length: 2.5 inches
• Gauge: 13
• Shank Type: Annular Ring
• Head Type: Checkered
• Finish: Hot Dipped Galvanized (Double Dipped)
• Count: 945 nails per box
• Weight: 5.359 pounds
• UPC: 00098342015080

Standard Information

• Brand: MAZE NAILS
• Manufacturer Part Number: S227A530
