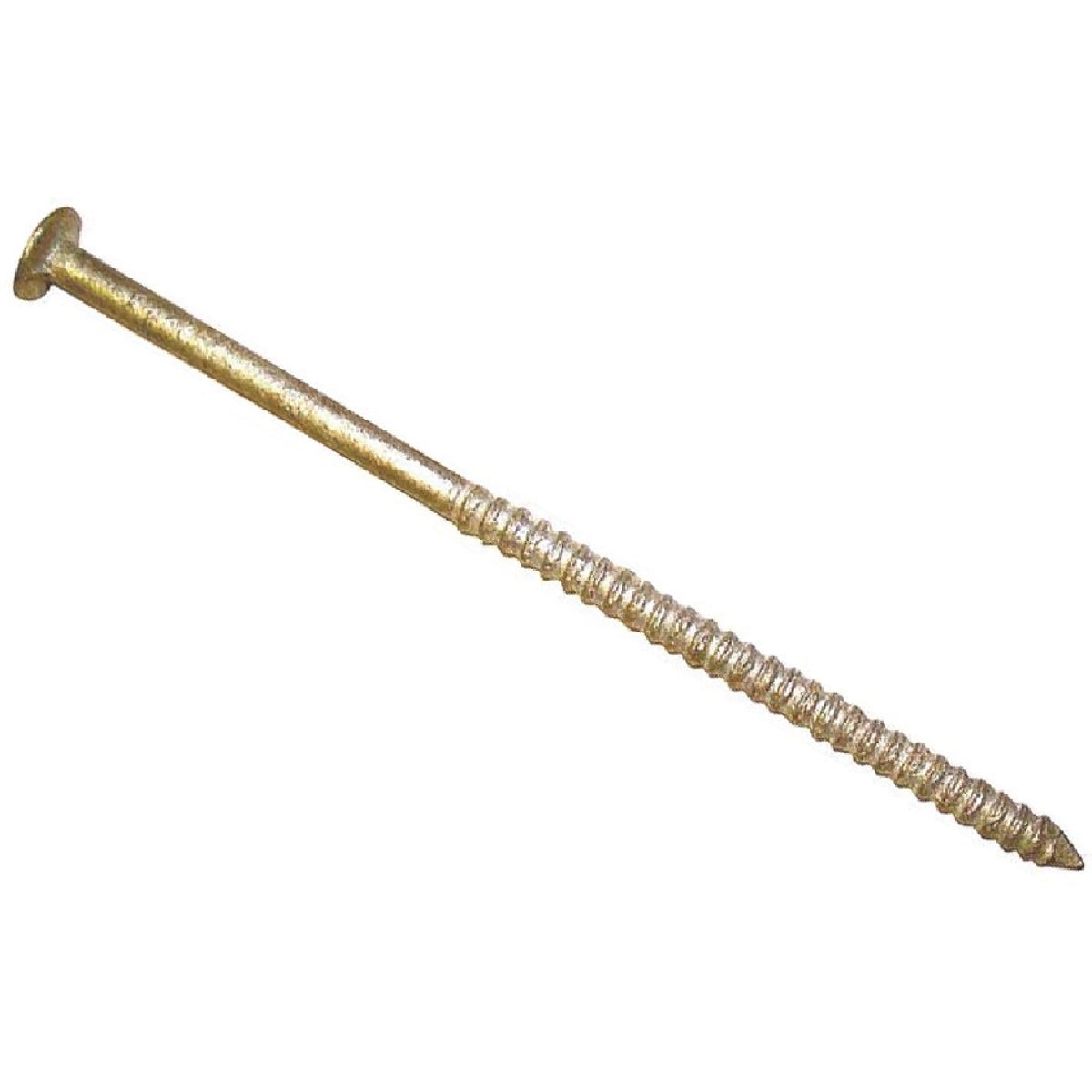

Maze Nails S225A530 Galvanized Ring Shank Siding Nails 5 Lb

Product Description

The MAZE NAILS S225A530 is a hot-dipped galvanized ring shank nail engineered specifically for wood siding applications where corrosion resistance and holding strength are critical. At 2 inches in length and 14 gauge in diameter, these nails feature an annular ring shank that delivers superior withdrawal resistance compared to smooth-shank fasteners. Each nail is double-dipped in molten zinc, providing a thick, durable galvanized coating suited for exterior exposure. The checkered head texture improves paint adhesion, helping finish coats bond without chipping or lifting around the nail head. The box contains approximately 1415 nails at a net weight of 5 pounds.

These nails are designed for installing wood siding, including cedar, redwood, and other split-prone species that require a fastener with controlled penetration and strong mechanical grip. The ring shank design reduces face-splitting in thin siding boards, making these a go-to choice for residential and light commercial exterior cladding projects. Carpenters, siding contractors, and experienced DIYers installing horizontal lap siding, bevel siding, or similar exterior wood cladding will find these appropriate for both hand-nailing and compatible nailer applications.

Key Features

• Annular ring shank provides extra withdrawal resistance in split-prone and soft wood species
• Double-dipped hot galvanized zinc coating for heavy-duty corrosion resistance in exterior applications
• 2-inch length and 14 gauge diameter suited for standard wood siding thickness
• Checkered head enhances paint and finish adhesion over the nail face
• Approximately 1415 nails per 5-pound box for efficient jobsite stocking

Compatibility

Designed as an OEM-style fastener for exterior wood siding installations, including cedar, redwood, and other split-prone lumber species commonly used in residential and light commercial cladding.

Installation Notes

Installation is typically performed by siding contractors or carpenters following local building code requirements and siding manufacturer fastener schedules. Drive nails at the specified spacing for the siding profile being installed, keeping penetration depth consistent to avoid overdriving and cracking the board face. For hand-nailing, use a hammer appropriate to the gauge; for pneumatic applications, verify nailer compatibility with 14-gauge ring shank stock before use. Always follow applicable building codes regarding fastener type, spacing, and corrosion resistance ratings for the exposure zone.

Technical Specifications

• Nail Length: 2 inches
• Gauge: 14
• Shank Type: Annular Ring
• Head Type: Checkered
• Coating: Hot Dipped Galvanized (Double Dipped Molten Zinc)
• Count per Box: 1415
• Net Weight: 5.325 pounds
• UPC: 00098342013802

Standard Information

• Brand: MAZE NAILS
• Manufacturer Part Number: S225A530
