Maze Nails H680A050 Pole Barn Nail 60d 6 in 7 Gauge 50 Lb

Product Description

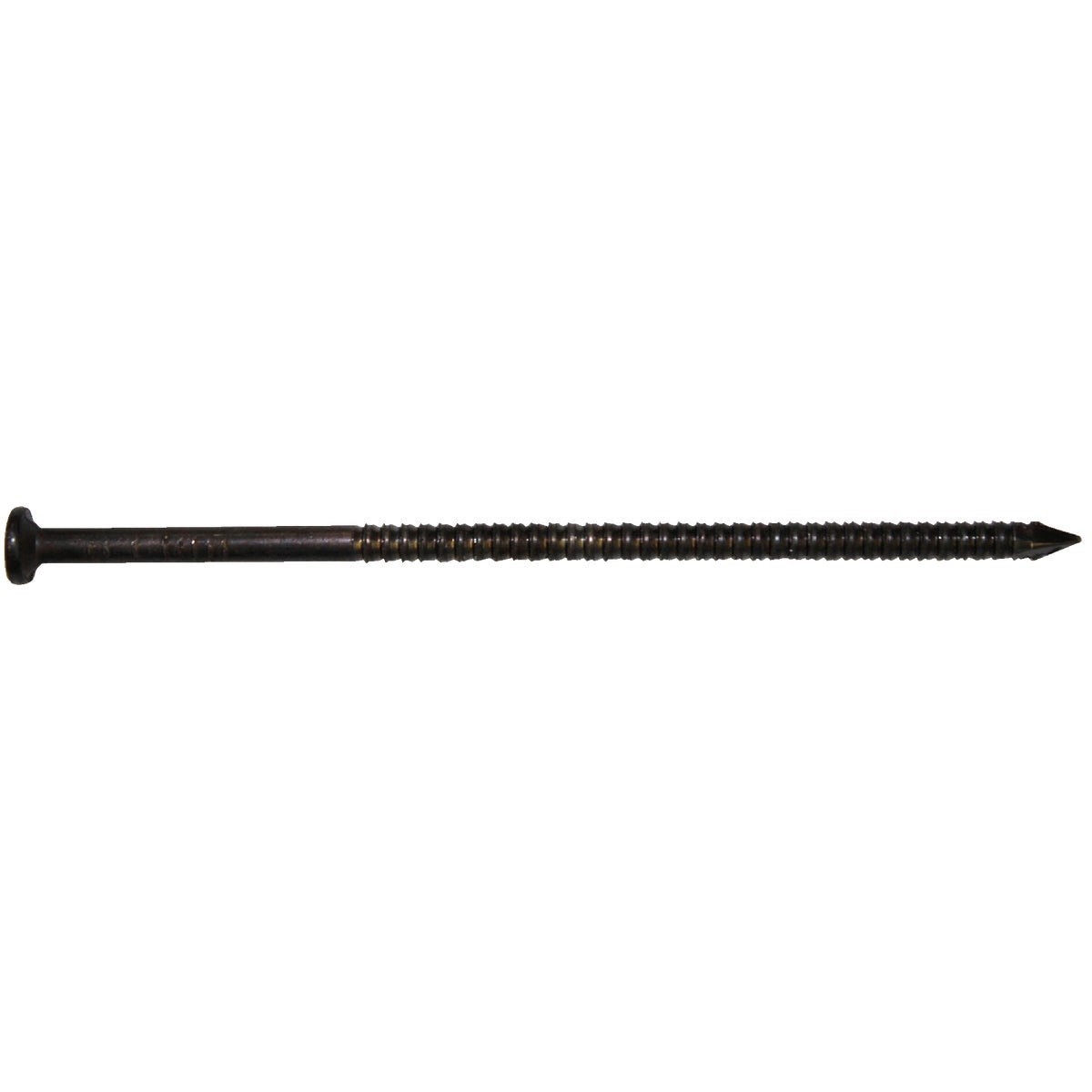

The MAZE NAILS H680A050 is a 60d, 6-inch, 7-gauge oil-quenched hardened ring shank pole barn nail sold in a bulk carton of 1100 nails weighing 50 pounds. Oil quenching hardens the steel shank for increased strength and resistance to bending during driving. The ring shank profile provides superior withdrawal resistance compared to smooth-shank fasteners, making it well suited for structural framing and heavy timber connections. This fastener complies with ASTM F1667, the standard specification for driven fasteners. Carpenters, general contractors, and agricultural construction crews are the primary installers.

These pole barn nails are used in post-frame construction, agricultural buildings, pole barns, and other heavy timber framing applications where a large-diameter, high-withdrawal-resistance fastener is required. The 60d designation and 6-inch length make this nail appropriate for through-nailing dimensional lumber and connecting heavy timber members. The bulk 50-pound carton format is suited to production framing work where high nail volume is consumed on a single job or across a crew.

Key Features

• Oil-quenched hardened steel construction for increased shank strength and reduced bending during driving
• Ring shank profile delivers superior withdrawal resistance versus smooth-shank nails in structural applications
• Meets ASTM F1667 standard specification for driven fasteners
• 60d size, 6-inch length, 7 gauge — appropriate for heavy timber and post-frame framing
• Bulk 1100-count, 50-pound carton reduces reorder frequency on large framing jobs

Compatibility

Designed for use in post-frame and pole barn construction applications requiring a 60d, 6-inch, 7-gauge ring shank nail compliant with ASTM F1667.

Installation Notes

Installation is performed by carpenters and general contractors working under applicable building codes for structural framing. Because these nails are oil-quenched hardened steel, safety glasses are recommended during driving to protect against fragment hazard. Use a framing hammer or pneumatic nailer rated for the nail diameter and length. Verify local code requirements for nail schedules and fastener specifications before beginning structural fastening.

Technical Specifications

• Nail Size: 60d
• Length: 6 inches
• Gauge: 7
• Shank Type: Ring Shank
• Finish: Oil-Quenched
• Count: 1100 nails per carton
• Carton Weight: 50 pounds
• Standard: ASTM F1667
• UPC: 00098342002325

Standard Information

• Brand: MAZE NAILS
• Manufacturer Part Number: H680A050
