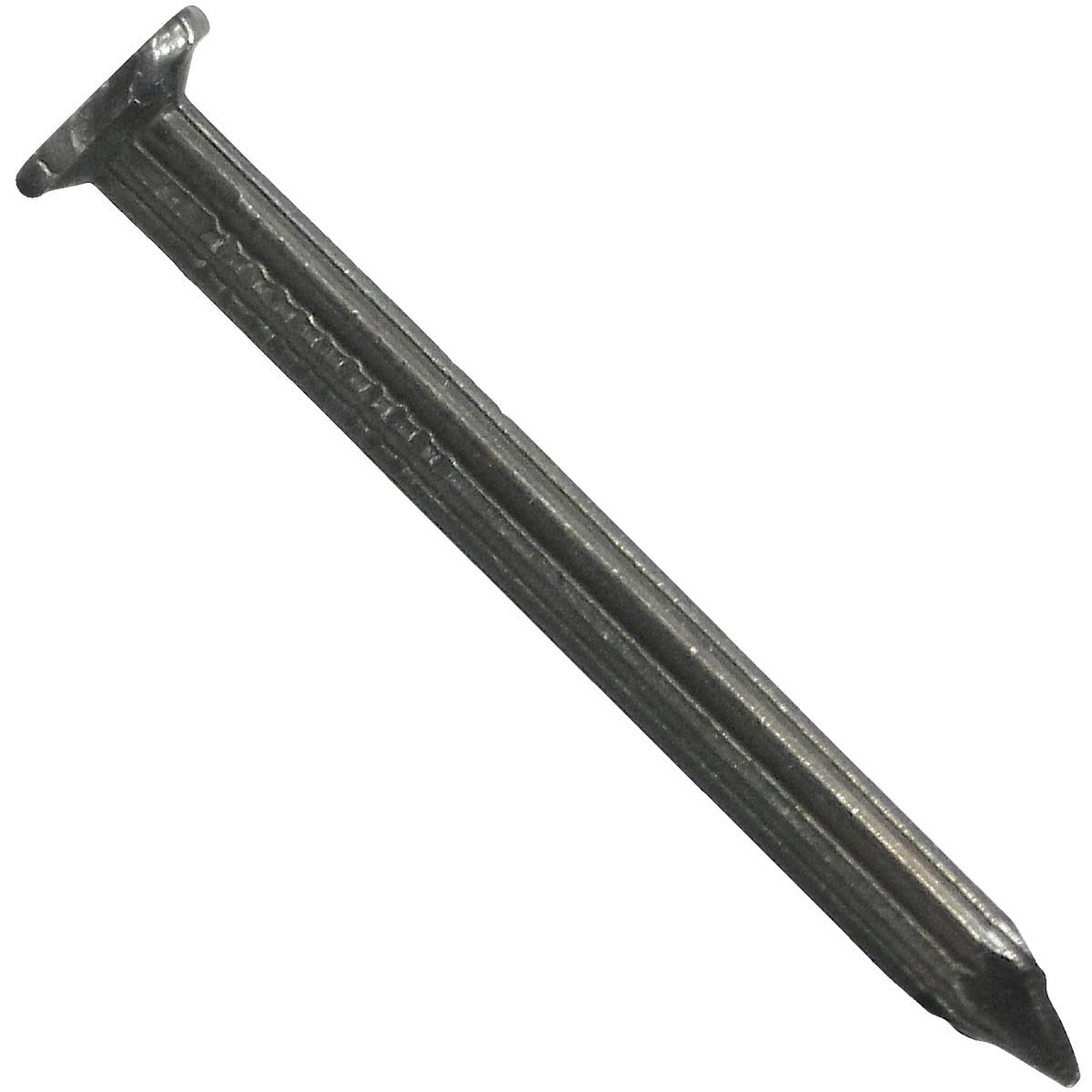

Maze Nails H57S530 Fluted Masonry Nails 6d 2in 9ga 540ct

Product Description

The MAZE NAILS H57S530 is a hardened steel fluted masonry nail designed for fastening furring strips, floor plates, and partition walls to concrete, block, and masonry substrates. The fluted shank increases holding power in masonry by displacing material as the nail is driven. At 2 inches in length and 9 gauge in diameter, this 6d nail provides reliable anchorage in typical light framing-to-masonry applications. Each box contains 540 nails and weighs approximately 5 pounds, making it a practical supply for production framing work. The hardened steel construction allows the nail to penetrate cured concrete and block without bending under normal hammering conditions.

These masonry nails are suited for residential and light commercial framing tasks where wood members must be secured directly to masonry or concrete. Typical applications include attaching bottom plates to slab floors, securing furring strips to block walls, and anchoring partition framing to concrete foundations. For best results, drive nails at least 3 inches from any edge of the masonry or block and ensure a minimum of 3/4 inch penetration into the base material. This nail is used by framing carpenters, masons, and general contractors working on below-grade and slab-on-grade construction.

Key Features

• Hardened steel construction penetrates cured concrete and masonry block
• Fluted shank design increases withdrawal resistance in masonry
• 6d, 2-inch length suitable for furring strips, floor plates, and partition walls
• 9-gauge wire diameter with a 5/16-inch head for solid seating
• 540-count box provides production-quantity supply for framing crews

Compatibility

Designed for use in concrete, cinder block, and standard masonry substrates. Intended for hand-driven installation in light framing-to-masonry connections including furring strip, floor plate, and partition wall applications.

Installation Notes

Installation is performed by framing carpenters or masons using a hand hammer rated for masonry work. Always wear ANSI-rated safety glasses when driving hardened nails, as chipping or spalling can occur. Drive nails no closer than 3 inches from the edge of any masonry or block to prevent cracking, and verify a minimum penetration of 3/4 inch into the masonry. Follow applicable building code requirements for fastener spacing and edge distances in your jurisdiction.

Technical Specifications

• Nail Size: 6d
• Length: 2 inches
• Gauge: 9
• Head Diameter: 5/16 inches
• Shank Type: Fluted
• Material: Hardened Steel
• Count: 540 nails per box
• Box Weight: 5.375 pounds
• UPC: 00098342001991

Standard Information

• Brand: MAZE NAILS
• Manufacturer Part Number: H57S530
