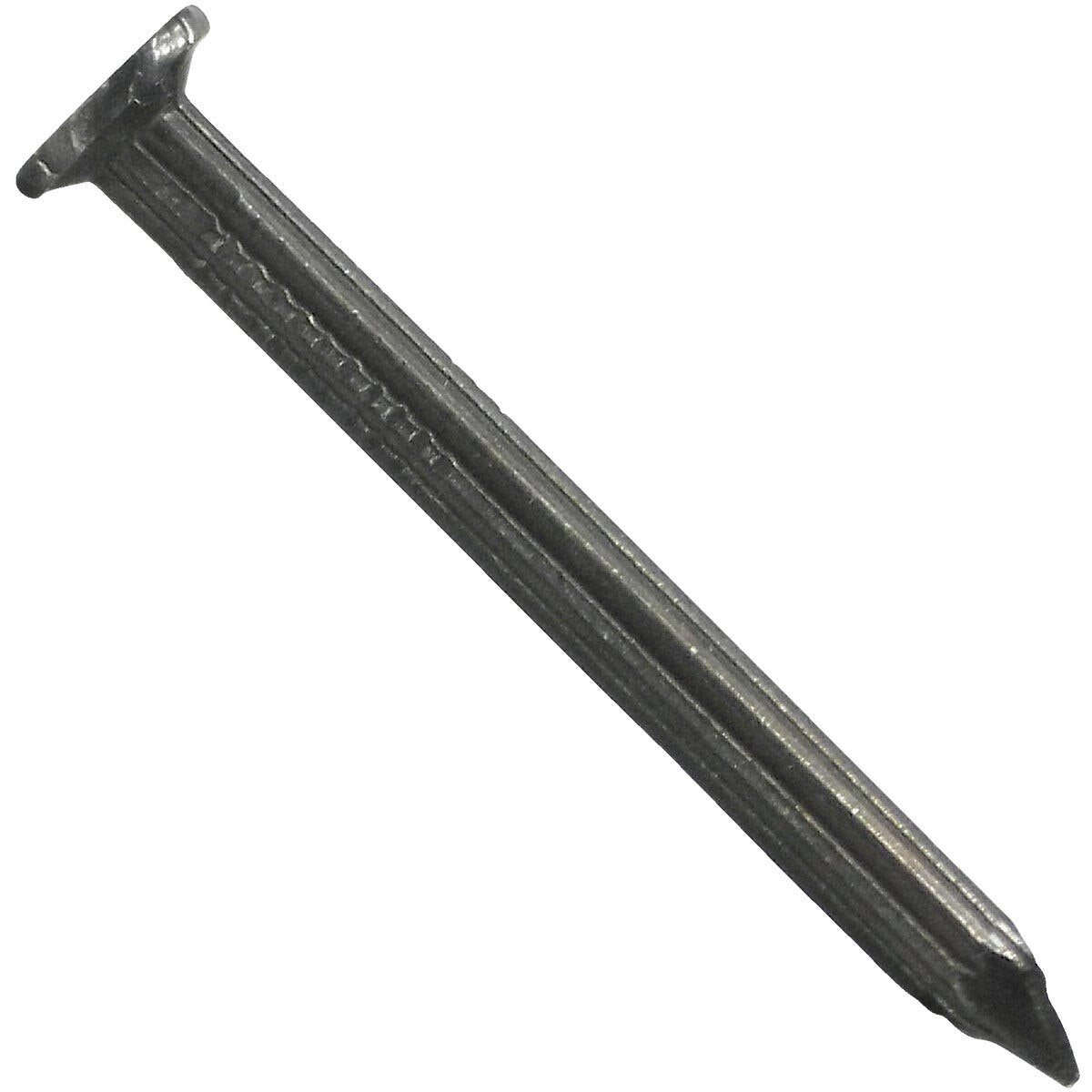

Maze Nails H57S112 Fluted Masonry Nails 6d 2 in 9 Gauge

Product Description

The MAZE NAILS H57S112 is a hardened steel fluted masonry nail designed for mechanically fastening wood members directly to concrete, block, and masonry substrates. At 2 inches in length with a 9-gauge shank and a 5/16-inch head, this 6d nail delivers the holding strength needed for high-resistance applications. The fluted shank increases friction and pull-out resistance compared to smooth-shank alternatives. Each box contains approximately 95 nails weighing 1 pound, making it a practical unit for job-site use. Hardened steel construction is required for driving into masonry without bending or shattering the fastener.

These nails are suited for attaching furring strips, floor plates, and partition wall bottom plates to concrete slabs or block walls in both residential and light commercial construction. They are commonly used by framing carpenters and general contractors during rough-in phases where powder-actuated tools are not available or preferred. A standard hammer and hand-driving technique apply. Safety glasses are always required when driving hardened nails due to the risk of fragment ejection.

Key Features

• Hardened steel construction for driving into concrete and masonry without deformation
• Fluted shank provides increased pull-out resistance over smooth-shank nails
• 5/16-inch head diameter for solid hammer contact and seating
• 9-gauge wire diameter for strength in dense substrates
• 2-inch length (6d) appropriate for furring strips, floor plates, and partition walls
• Approximately 95 nails per 1-pound box for manageable job-site quantities

Compatibility

Designed for use in concrete, block, and masonry substrates as an OEM-style fastener for wood-to-masonry attachment applications including furring strips, floor plates, and partition wall bottom plates.

Installation Notes

Drive nails a minimum of 3 inches from the edge of any masonry or block to reduce the risk of cracking or spalling the substrate. Minimum penetration into masonry should be at least 3/4 inch for adequate holding strength. Always wear safety glasses when driving hardened nails, as fragments can eject at high velocity. This fastener is installed by carpenters, framers, or general contractors using a standard framing or masonry hammer.

Technical Specifications

• Nail Size: 6d
• Length: 2 inches
• Gauge: 9
• Head Diameter: 5/16 inches
• Material: Hardened Steel
• Shank Type: Fluted
• Count: 95 nails
• Box Weight: 1.119 pounds
• UPC: 00098342001984

Standard Information

• Brand: MAZE NAILS
• Manufacturer Part Number: H57S112
