Maze Nails H55S530 Fluted Masonry Nails 4d 9 Gauge 5 Lb

Product Description

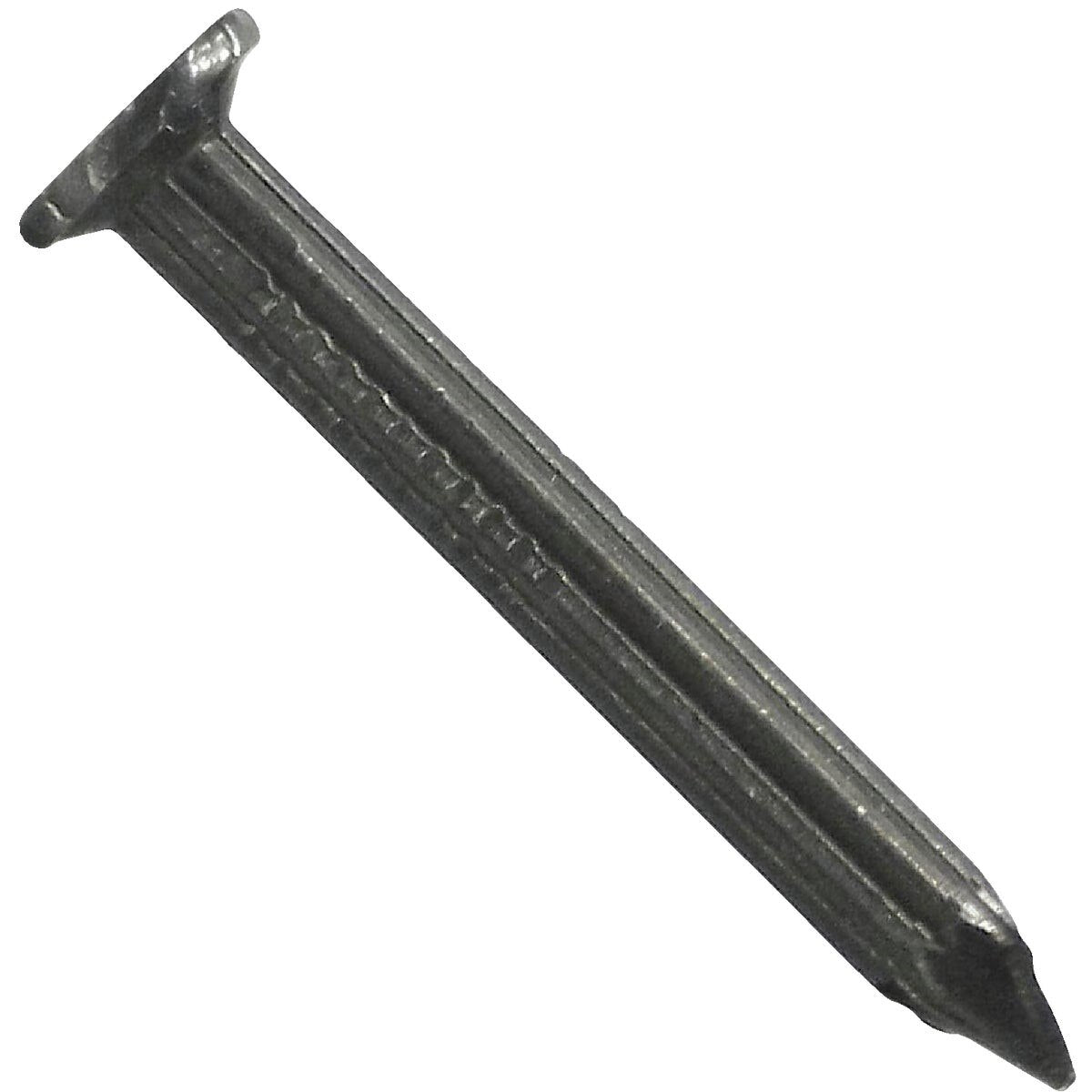

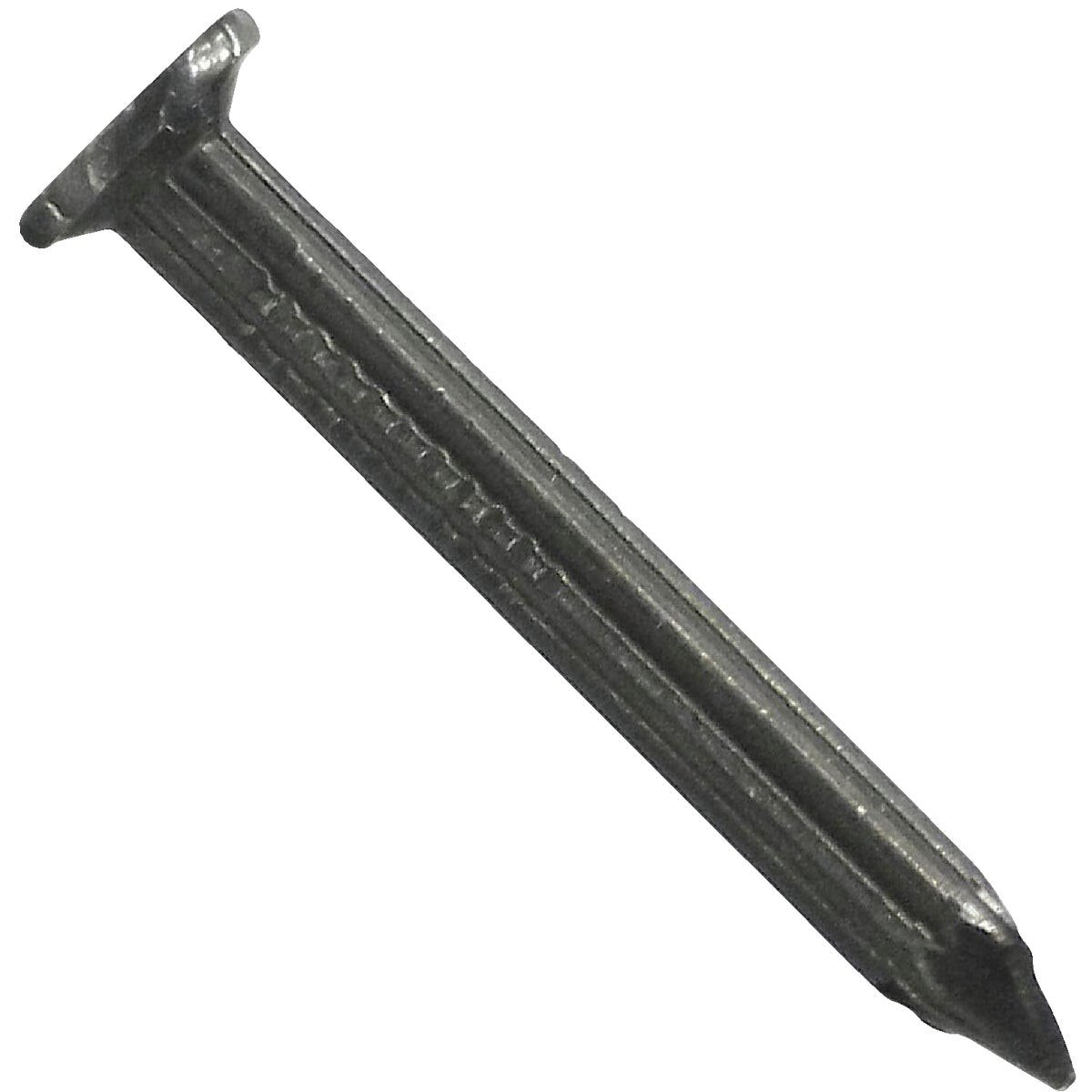

The MAZE NAILS H55S530 is a hardened steel fluted masonry nail designed for mechanical fastening into concrete, block, and masonry substrates. At 4d and 1.5 inches in length with a 9-gauge shank, these nails provide reliable holding power for light-to-medium masonry fastening tasks. The fluted shank geometry displaces material as the nail is driven, increasing resistance to pullout. Each box contains 645 nails and weighs 5 pounds, making it a practical stocking unit for production framing and finish crews working around masonry.

These nails are suited for fastening furring strips, floor plates, and partition wall bottom plates to concrete or block. Applications include residential and light commercial framing where wood members must be secured directly to masonry surfaces. The 5/16-inch head diameter provides adequate bearing surface to resist pull-through on standard dimensional lumber. Best results are achieved when nails are driven at least 3 inches from the edge of masonry or block, with a minimum penetration of 0.75 inches into the substrate. Safety glasses are required when driving hardened nails due to the risk of spalling or nail fragment ejection.

Key Features

• Hardened steel construction resists bending on contact with dense masonry and block
• Fluted shank increases pullout resistance compared to smooth-shank masonry nails
• 4d size at 1.5 inches suits furring strip and floor plate fastening tasks
• 9-gauge wire diameter provides stiffness for direct-drive applications
• 5/16-inch head diameter reduces pull-through on wood members
• 645-count, 5-pound box supports production-volume fastening work

Compatibility

Designed for use in concrete, block, and masonry substrates where furring strips, floor plates, and partition wall plates require mechanical fastening.

Installation Notes

Installation is typically performed by framing carpenters or masonry contractors using a hand hammer or powder-actuated tool rated for hardened nails. Always wear ANSI-rated safety glasses when driving hardened masonry nails, as hardened steel can spall or fracture on impact. Drive nails no closer than 3 inches from any edge of masonry or block to prevent substrate cracking, and ensure a minimum of 0.75 inches of nail penetration into the masonry. Consult applicable building codes for fastener spacing requirements at floor plates and partition walls.

Technical Specifications

• Nail Size: 4d
• Length: 1.5 inches
• Gauge: 9
• Head Diameter: 5/16 inches
• Shank Type: Fluted
• Material: Hardened Steel
• Count: 645 nails
• Package Weight: 5.334 pounds
• UOM: Box
• UPC: 00098342001915

Standard Information

• Brand: MAZE NAILS
• Manufacturer Part Number: H55S530
