Maze Nails F142530 Ring Shank Underlayment Nails 5 Lb

Product Description

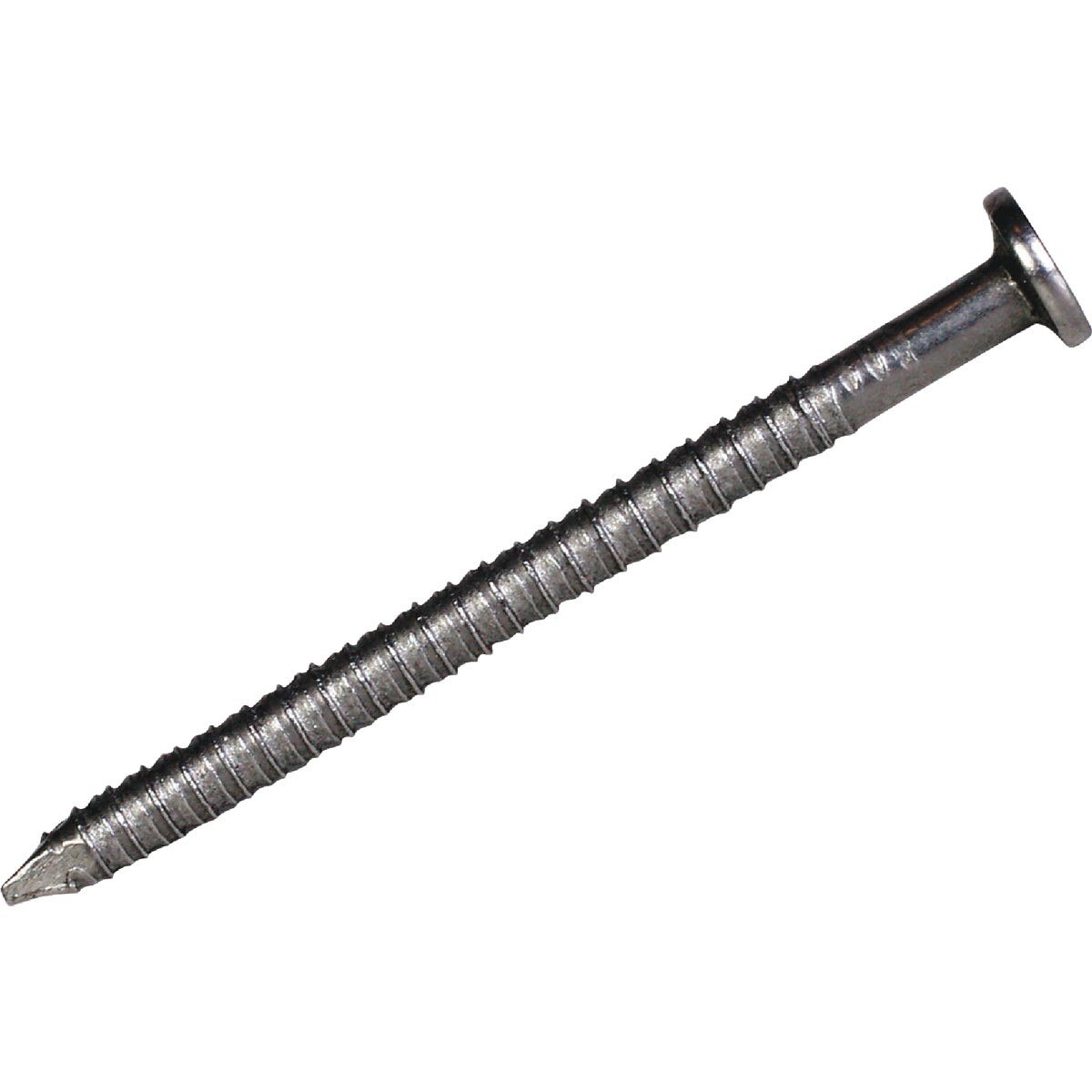

The MAZE NAILS F142530 is a 1-1/4 inch, 14-gauge ring shank nail engineered for underlayment, sheathing, and sub-floor fastening applications. The ring shank profile bites into wood fibers as the nail drives, creating mechanical resistance that smooth-shank nails cannot match. Each box contains 2,640 nails at a net weight of 5 pounds, making it a practical quantity for flooring crews working through full sub-floor or underlayment installations. The regular steel shank provides the strength needed for structural panel fastening without the added cost of stainless or galvanized options where interior use makes corrosion resistance unnecessary.

These nails are recommended by plywood producers for underlayment, sheathing, and sub-floor panel applications in residential and light commercial construction. Flooring installers and framers reach for this fastener when securing plywood or OSB panels to floor joists or existing sub-floor decking. The 1-1/4 inch length and 14-gauge diameter suit standard panel-to-panel and panel-to-joist fastening schedules common in interior flooring assemblies.

Key Features

• Ring shank profile increases withdrawal resistance compared to smooth-shank nails
• 1-1/4 inch length suited for underlayment and panel sheathing fastening schedules
• 14-gauge regular steel shank for consistent drive and holding strength
• 2,640 nails per box reduces restocking interruptions on larger jobs
• Recommended by plywood producers for underlayment, sheathing, and sub-floor use

Compatibility

Designed for use with plywood and OSB underlayment, sheathing, and sub-floor panels in interior residential and light commercial flooring assemblies where a 1-1/4 inch, 14-gauge ring shank fastener is specified.

Installation Notes

Installation is performed by flooring installers, finish carpenters, or general contractors following the fastener schedule specified by the panel manufacturer or local building code. Power down pneumatic nailers and verify the correct magazine fitment before loading. Always follow the nailing pattern and spacing intervals required by the panel or flooring system manufacturer to achieve rated performance. Eye and hearing protection are required when operating pneumatic or powder-actuated fastening tools.

Technical Specifications

• Nail Length: 1-1/4 inches
• Gauge: 14
• Shank Type: Ring Shank
• Material: Regular Steel
• Count: 2,640 nails
• Box Weight: 5.342 pounds
• UPC: 00098342000802

Standard Information

• Brand: MAZE NAILS
• Manufacturer Part Number: F142530
